Fertigation Machine Not Drawing Fertilizer: Trace the Suction Path

Time:2025-12-02 23:05:14 Popularity:1186

Quick Answer

A fertigation machine not drawing fertilizer needs a stock-solution path check before a recipe or EC target change. Confirm that injection is enabled, the pickup is submerged, the suction line is open and the injector has the pressure conditions it needs. A running motor or an open command does not prove that fertilizer entered the irrigation water. Check the actual hydraulic arrangement and delivered controls of the NiuBoL installation rather than a generic pump or channel rating.

Fertigation machine enclosures and internal assemblies

Establish whether injection stopped or only its indication changed

Start with the affected channel and operating zone. Record the stock level, injection command, indicated flow, main water flow and pressure at the time of the problem. A zero flow display may indicate no delivery, a blocked meter or a signal fault. A flat mixed-water EC value can also result from sensor position or mixing delay. These observations need different checks.

Where the approved service procedure allows it, compare indicated delivery with an independent stock-volume observation over a known interval. Keep the same stock solution and operating conditions, and account for line filling. Never open a pressurized fertilizer connection to see whether it is flowing. Isolate and depressurize the affected equipment before mechanical inspection.

Irrigation control enclosure with valve and flow measurement components

Check the suction path from the tank outward

A pickup above the liquid level draws air rather than fertilizer. A submerged pickup may still be obstructed by sediment, a blocked strainer or a closed valve. Inspect the tank contents and the accessible suction line after safe isolation. Confirm that the stock preparation is appropriate for the fertilizer and water conditions; nominally soluble products can still create deposits when mixed incompatibly.

Air can enter through a loose joint without an obvious outward liquid leak on a suction line. A line that drains between cycles can also require the specified priming process. Follow the injector's priming procedure rather than repeatedly increasing its setting. Restore sound connections and a clear pickup before judging whether the injector capacity is insufficient.

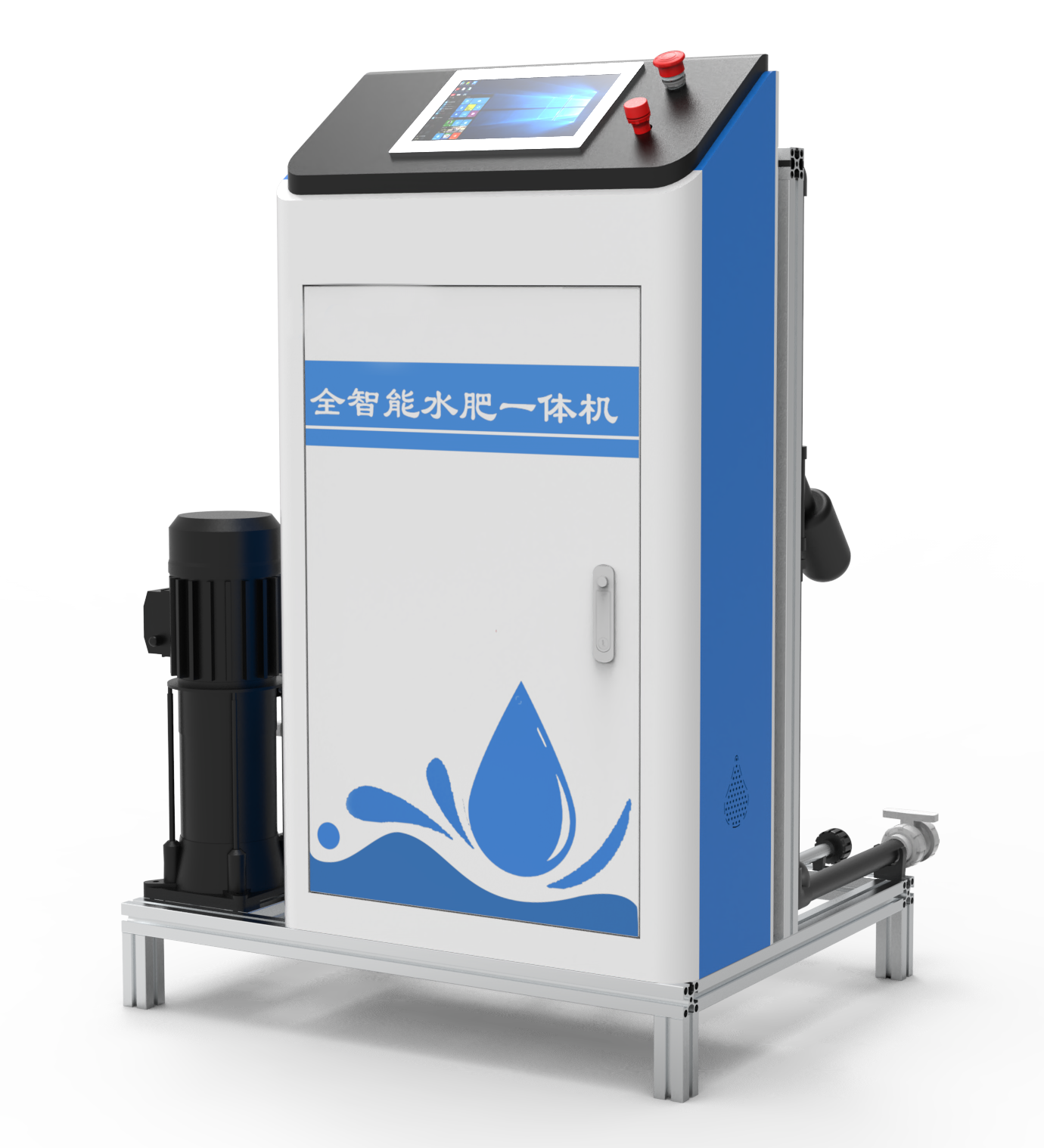

Fertigation machine assembly with touchscreen enclosure

Match the diagnosis to Venturi or pump injection

A Venturi draws stock solution through a pressure difference created by water moving through its restriction. Its suction performance depends on the actual inlet and outlet conditions. If a zone change alters main-line pressure or bypass flow, suction can stop even though the controller still commands injection. Check the operating point against the selected injector's performance information.

A pump-assisted assembly has a different hydraulic path. A motor can run while the pump is unprimed, a valve is closed or the discharge path is restricted. Compare the pump's flow/head curve with the required duty between its inlet and the injection point, including elevation and component losses. A maximum head printed on a pump is not a promise of the required flow at that head.

Illustration of irrigation stock tanks controls and field connections

Fertigation machine not drawing fertilizer: diagnostic checks

CheckQuantity or conditionWhat the comparison resolves
Stock supplyUsable liquid level and pickup conditionEmpty supply or restricted intake versus an injector problem
Venturi operating pointInlet pressure, outlet pressure and motive flowWhether the required suction condition exists
Pump-assisted dutyAvailable flow/head at the actual discharge conditionWhether the pump can deliver through the installed path
Injection feedbackIndicated flow versus independently observed stock useReal delivery loss versus a measurement fault
Mixed-water responseEC/pH measurement point and response delayDelivery problem versus feedback or mixing behavior

There is no single pressure difference or injection rate that applies to every NiuBoL fertigation configuration. Use the equipment schedule and operating curve for the selected assembly. If these are unavailable, obtain them before changing a booster, resizing an injector or approving a replacement.

Fertigation equipment and stock tanks installed inside a greenhouse

Investigate a problem that appears only in one irrigation zone

Compare the affected zone with one where injection is known to work. Keep the recipe constant and record water flow, injection-point pressure and stock delivery for each zone. Smaller or larger zones can move the hydraulic system to different operating points. A setting proven in one zone is not proof of delivery in every other zone.

Check what changed immediately before the fault: a filter service, a zone valve replacement, a stock tank change or an altered schedule. Restore one identified condition at a time where safe. Changing the pump setting, EC target and valve timing together makes it difficult to learn which change corrected the fault and whether the original dose was preserved.

Illustration of source water filtration pump and fertilizer stock connections

Keep EC feedback separate from proof of stock delivery

EC responds to dissolved ions in the mixed water. It is not selective for one fertilizer or nutrient. Source-water changes, stock composition and the measurement location all affect the interpretation. If a conductivity value is not changing, verify that the controller is receiving a current, correctly scaled liquid measurement before increasing injection.

For an RS485 Modbus RTU instrument, compare its local value or diagnostic reading with the decoded value in the controller. Check the register map, scale and observation time. Analog instruments require their corresponding input configuration. Communications compatibility does not establish that the probe is in the right flow path or that a stock channel actually delivered liquid.

Irrigation pipework with pumping and filtration equipment

Return the channel to service with a controlled delivery check

After the fault is corrected, follow the approved water-only and stock-delivery test sequence. Confirm stable main water flow, the required injection condition and agreement between delivery feedback and the independent check. Then evaluate the mixed-water response after the relevant transport and mixing delay. Record the test zone and stock solution so the result is not misapplied to another duty.

For technical support or a replacement quotation, provide the hydraulic diagram, injector and pump identification, zone operating pressures, affected channel, stock preparation and the checks already completed. Photos of the pickup, valves and assembled pipework help locate the relevant components. The symptom of no fertilizer delivery alone does not identify the required replacement pump.

Illustration of irrigation delivery and field sensing across growing zones

Project Decision FAQ

Q1. Should the EC target be raised when stock delivery stops?

No. First establish why liquid is not being delivered or indicated. Raising the target can create an excessive command when the blockage or feedback problem is corrected.

Q2. Does a running fertilizer pump prove injection?

No. Priming, suction supply, valve position and discharge conditions can prevent delivery while the motor runs. Check the hydraulic path and actual stock use.

Q3. Why does Venturi suction disappear after switching zones?

The zone may change the inlet/outlet pressure and motive flow. Compare the new operating point with the injector's required conditions instead of assuming an electrical fault.

Q4. Can a higher-head pump solve every suction problem?

No. An empty tank, air leak, blocked pickup or closed valve remains a fault regardless of the pump rating. Size a replacement only after identifying the required duty and cause.

Q5. What should be demonstrated after repair?

Show stable delivery in the affected zone, valid flow feedback and an appropriate mixed-water response. Keep the settings and test conditions with the service record.

Examples of fertigation and field monitoring arrangements

Summary

A fertigation machine not drawing fertilizer needs a traced hydraulic diagnosis, not an immediate recipe change. Check the stock supply, suction path and actual injector duty, then verify delivery independently of EC. Send NiuBoL the installed configuration and operating measurements so corrective work or replacement equipment can be matched to the cause.
