Turbidity Sensor Working Principle, Types & Applications

Quick Answer

A turbidity sensor is an optical measuring instrument used to determine the cloudiness of water caused by suspended and colloidal particles. Turbidity is commonly reported in nephelometric turbidity units (NTU) and is an important parameter in drinking water treatment, wastewater monitoring, rivers, lakes, aquaculture and industrial processes.

Most modern online turbidity sensors use light scattering or light transmission to evaluate how particles interact with an optical beam. A common method is 90-degree light scattering, where a photodetector measures light scattered approximately perpendicular to the incident beam.

The sensor converts the optical response into a calibrated turbidity value. Industrial online versions can provide RS485 Modbus RTU communication for connection to PLCs, RTUs, data loggers and compatible water quality monitoring systems.

What Does a Turbidity Sensor Measure?

Turbidity describes the optical effect of suspended and colloidal particles in water. When light travels through a water sample, particles can scatter and absorb the light, changing the intensity and direction of the transmitted beam.

Examples of materials that can affect turbidity include fine sediment, clay, algae, organic particles and other suspended matter.

The measured optical response depends on particle concentration, particle size, shape, color, refractive index and the instrument's optical design.

Turbidity is not a direct measurement of total suspended solids (TSS) concentration. A conversion from NTU to mg/L requires a suitable correlation based on the characteristics of the measured water.

How Does a Turbidity Sensor Work?

An optical turbidity sensor sends light into the water and measures how the water sample changes the optical signal. The instrument typically contains a light source, optical path, photodetector, signal-processing electronics and calibration parameters.

Light Source → Water Sample → Light Scattering → Photodetector → Signal Processing → Turbidity (NTU)

1. Light Emission

The light source emits a beam through the measurement region. Many industrial nephelometric sensors use an infrared LED, while other instruments may use visible-light sources depending on the measuring method and applicable standard.

The light source wavelength and optical design are selected according to the intended turbidity measurement method. Infrared light is often used to reduce some effects of sample color, although interference cannot be assumed to be eliminated completely.

2. Light Scattering in Water

When light encounters suspended particles, part of the incident light is scattered in different directions. A detector positioned at a defined angle measures a portion of this scattered light.

Under suitable calibration conditions, changes in the scattered-light signal are related to changes in turbidity. However, the response is not always linear across all particle concentrations and measurement ranges.

3. Optical Detection

A photodetector converts the received optical signal into an electrical signal. The instrument processes this signal using amplification, filtering, analog-to-digital conversion and calibration data as applicable.

The electronic design varies by sensor. A specific resistor, amplifier or photodiode model should not be considered a universal component of every turbidity sensor.

4. Signal Processing and Calibration

The instrument converts the processed optical response into a turbidity value using its calibration relationship. Depending on the design, additional processing may compensate for temperature effects, optical drift or other measurement influences.

Calibration accuracy, measurement range, optical geometry and water characteristics determine how well the instrument can report turbidity under the intended operating conditions.

90-Degree Light Scattering Principle

The 90-degree scattering method is widely used for nephelometric turbidity measurement. In this arrangement, light enters the water sample and the detector measures scattered light approximately perpendicular to the incident beam.

This geometry provides a defined measurement relationship between optical scattering and turbidity. It is used in many water quality monitoring instruments, including online industrial probes.

The NiuBoL Online Turbidity Sensor uses a 90-degree scattered-light measuring principle with an infrared light source.

Where a project specifies ISO 7027 or another measurement method, verify the required optical configuration and conformity documentation for the offered instrument. A 90-degree infrared design alone does not establish certified compliance.

Scattered-Light vs Transmitted-Light Turbidity Measurement

Optical turbidity instruments may measure scattered light, transmitted light or a combination of optical signals. The appropriate method depends on the required measurement range and sample characteristics.

Dual-path and multi-angle designs are not universal requirements for turbidity sensors. Their actual implementation and performance depend on the instrument.

What Is the Difference Between NTU and TSS?

NTU and TSS are both used in water monitoring, but they represent different measurements.

For example, two water samples may contain the same mass of suspended solids but produce different turbidity readings because their particles differ in size, color, shape or optical properties.

When a monitoring project requires TSS results from turbidity measurements, an appropriate correlation should be established using representative samples and reference testing.

A turbidity sensor also does not identify bacteria, dissolved contaminants or individual particle types.

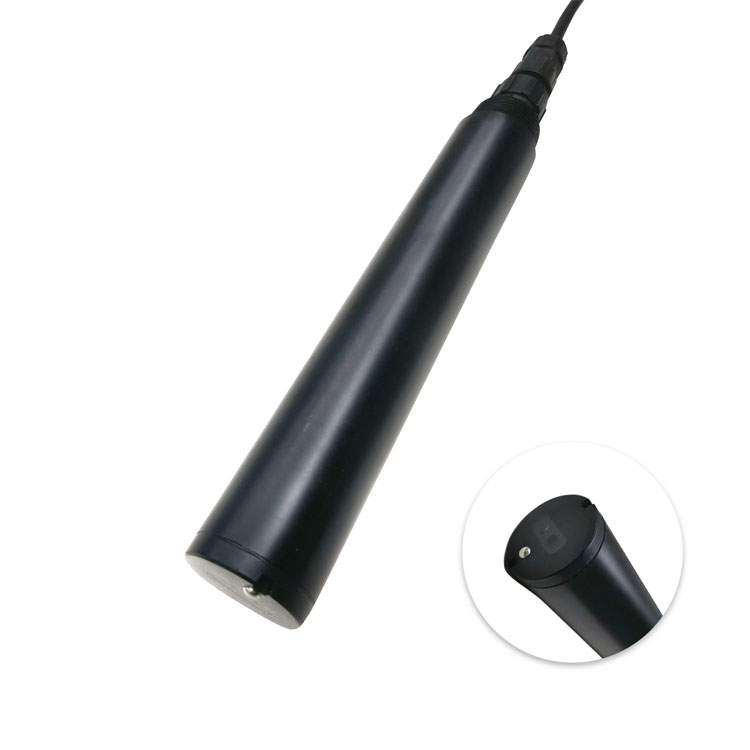

NiuBoL Online Turbidity Sensor

The NiuBoL online turbidity sensor is designed for continuous optical turbidity measurement in compatible water quality monitoring systems. It uses a 90-degree light-scattering measurement arrangement and provides digital communication for industrial data acquisition.

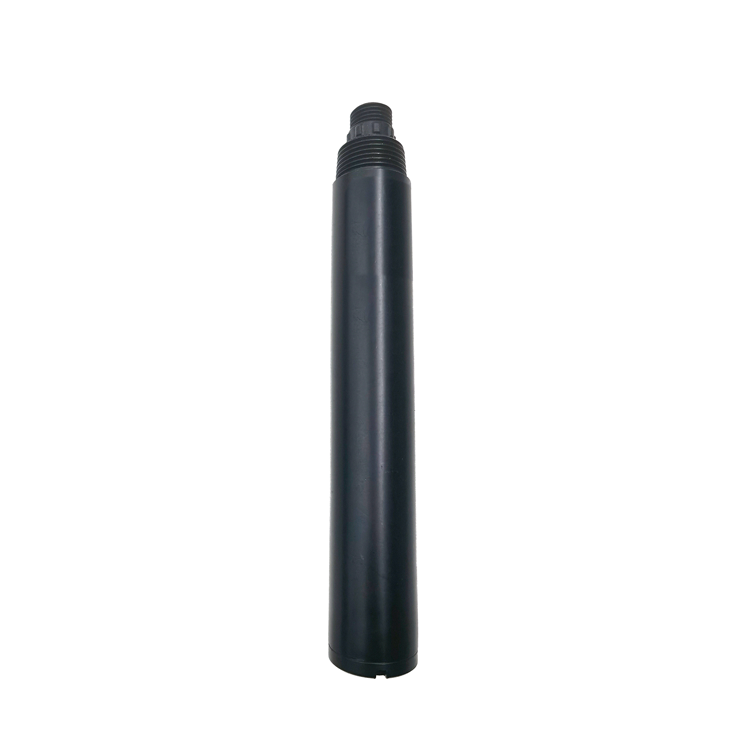

The NBL-WQ-TS Online Turbidity Sensor is a representative NiuBoL product for this application.

Representative Technical Specifications

Available measurement ranges, accuracy, output options and installation requirements should be matched to the exact offered configuration. For projects requiring analog output, confirm the available transmitter version before ordering.

Factors Affecting Turbidity Measurement Accuracy

Optical turbidity measurements can be affected by sample characteristics and instrument condition. Reliable monitoring requires suitable selection, installation, calibration and maintenance.

Turbidity Sensor Calibration

Calibration establishes the relationship between optical response and the reported turbidity value. Suitable turbidity reference standards should be used according to the instrument procedure.

Many online turbidity sensors support zero-point and span calibration. Zero calibration establishes the low-turbidity baseline, while span calibration uses a suitable reference standard to verify or adjust the measurement response.

For the referenced NiuBoL sensor, calibration is performed using the applicable standard solutions after allowing readings to stabilize according to the user manual.

The calibration concentration, procedure and frequency depend on the sensor's measurement range and application. A single calibration concentration should not be applied to every turbidity range.

Installation and Maintenance of Online Turbidity Sensors

Online turbidity probes should be installed in a representative water location with sufficient clearance around the sensing surface. The measurement window should not be positioned directly against a wall or other reflective obstruction.

For the NiuBoL immersion sensor, the installation instructions specify clearance of more than 5 cm from a side wall and more than 10 cm from the bottom.

The installation should also minimize air bubbles, mechanical impacts and excessive sediment deposition where practical.

Cleaning frequency depends on water composition, suspended solids, biological growth and operating conditions. The presence of automatic cleaning should be confirmed for the selected sensor model rather than assumed for every turbidity probe.

Applications of Turbidity Sensors

Turbidity sensors are used where changes in water clarity and suspended-particle conditions provide useful operational or environmental information.

Drinking Water Treatment  •  Wastewater Treatment  •  Rivers & Lakes
Aquaculture  •  Industrial Process Water  •  Filtration Monitoring

Drinking Water Treatment

Turbidity monitoring can support assessment of raw water, clarification and filtration stages. Appropriate operating limits should be based on applicable drinking-water requirements and the treatment process.

A turbidity measurement alone does not establish that water is microbiologically safe or compliant with all drinking-water standards.

Wastewater Treatment

Online turbidity measurements can help operators observe changes in wastewater clarity and the performance of selected treatment stages.

Where a process requires suspended solids concentration, a separate TSS measurement method or a validated site-specific NTU-to-TSS correlation may be needed.

River and Lake Monitoring

Rivers, lakes and reservoirs may experience turbidity changes after rainfall, sediment disturbance, algal activity or other environmental events.

Continuous turbidity measurements can support environmental observation when combined with other water quality and hydrological information.

Aquaculture

Turbidity can provide information about suspended particles and water clarity in aquaculture systems. The interpretation depends on species, farming method, suspended solids characteristics and water treatment requirements.

Dissolved oxygen, temperature, pH, ammonia nitrogen and other parameters may also be needed for a complete aquaculture monitoring system.

RS485 Modbus Turbidity Sensor Integration

An online turbidity sensor with RS485 Modbus RTU communication can connect to compatible industrial and environmental monitoring equipment.

Turbidity Sensor → RS485 Modbus RTU → PLC / RTU / Data Logger → 4G / Ethernet → Cloud Platform / SCADA / Private Server

The turbidity sensor measures the water sample and provides local data. Remote communication, historical data storage, trend analysis and automatic alarms require suitable additional equipment or software.

For RS485 integration, confirm the power supply, wiring polarity, Modbus address, baud rate, register map and measurement scaling for the selected sensor configuration.

For multi-parameter monitoring, the turbidity sensor can be combined with pH, conductivity, dissolved oxygen or other water quality instruments using a compatible data acquisition system.

How to Choose a Turbidity Sensor

The most appropriate turbidity sensor depends on the water characteristics and the range of turbidity expected during normal and abnormal operating conditions.

Online Turbidity Sensor Technical Manual

For technical specifications, installation instructions, calibration and RS485 communication information, refer to the appropriate turbidity sensor manual.

ZS-206A Online Turbidity Sensor User Manual (PDF)

For the NBL-WQ-TS product version and its current output configuration, consult the NBL-WQ-TS product page.

Turbidity Monitoring with NiuBoL

NiuBoL provides optical turbidity sensors for drinking-water treatment, wastewater systems, river and lake monitoring, aquaculture and industrial water quality applications.

For a wider selection of instruments, explore the NiuBoL Water Quality Sensors category.

For model selection and quotation, specify the water type, expected turbidity range, required accuracy, installation method, operating temperature, pressure, output interface, cable length, quantity and receiving PLC, RTU, data logger or IoT gateway.

Project Decision FAQ

Q1. What is the working principle of a turbidity sensor?

A1. Optical turbidity sensors measure how particles in water scatter or attenuate light. A photodetector receives the optical signal, and the electronics convert it into a calibrated turbidity value.

Q2. Why do turbidity sensors use 90-degree light scattering?

A2. The 90-degree geometry measures light scattered approximately perpendicular to the incident beam and is widely used in nephelometric turbidity measurement.

Q3. What does NTU mean?

A3. NTU stands for Nephelometric Turbidity Unit and is used to report turbidity measured using an appropriate nephelometric method.

Q4. Is NTU the same as mg/L of suspended solids?

A4. No. NTU is an optical turbidity measurement, while mg/L of suspended solids is a mass concentration. A suitable correlation is required to estimate TSS from turbidity.

Q5. Can a turbidity sensor identify bacteria or pollutants?

A5. No. Turbidity sensors measure an optical response from particles. They do not independently identify bacteria, dissolved chemicals or specific contaminants.

Q6. Do turbidity sensors require calibration?

A6. Yes. Calibration or verification using appropriate reference standards is required according to the instrument's operating conditions and maintenance procedure.

Q7. Can a turbidity sensor connect to a PLC?

A7. Yes. RS485 Modbus turbidity sensors can connect to compatible PLCs, RTUs, data loggers and other industrial acquisition equipment.

Q8. Do all turbidity sensors have automatic cleaning?

A8. No. Automatic cleaning depends on the selected instrument and configuration. Regular optical-window inspection and maintenance are still important.

Q9. Can turbidity data be sent through 4G?

A9. Yes. A compatible data logger or IoT gateway can transmit sensor data through 4G. The local RS485 turbidity sensor does not automatically include cellular communication.

Summary

A turbidity sensor reports an optical response, not the identity of contaminants or a universal suspended-solids concentration. Match the measuring range and optical method to the required decision, then control bubbles, reflections and fouling at the installation. For a NiuBoL selection review, provide the expected turbidity range, required accuracy and sampling arrangement.
