Rain sensor common faults and repair methods

Time:2024-04-09 10:17:10 Popularity:6192

Rain sensor troubleshooting involves identifying whether a rainfall measurement problem is caused by the sensing mechanism, installation conditions, electrical connections, communication settings or data acquisition equipment.

Common rain sensor faults include zero rainfall readings during rain, inaccurate rainfall accumulation, missing pulse signals, RS485 communication timeouts, intermittent measurements and abnormal readings caused by vibration or contamination.

The correct troubleshooting procedure depends on the sensor technology. A tipping bucket rain gauge measures rainfall through mechanical tipping events, while a piezoelectric rain sensor detects raindrop impacts using an electronic sensing element.

This guide explains how to identify common faults, perform safe field inspections and determine when professional calibration or manufacturer service is required.

1. Identify the Rain Sensor Type Before Troubleshooting

Before checking wiring or attempting maintenance, identify the exact rain sensor model and its output interface.

Different rain sensors may appear similar externally but use different measurement methods, electrical connections and signal-processing requirements.

Sensor TypeMain Troubleshooting Focus
Passive Pulse Tipping BucketBucket movement, switch pulses, cable continuity and pulse counter settings
RS485 Tipping Bucket Rain GaugeMechanical tipping, power supply, Modbus communication and rainfall register interpretation
Piezoelectric Rain SensorImpact sensing surface, mounting vibration, power supply and electronic communication
Integrated Weather Sensor with RainfallRainfall sensing element, combined instrument settings and data acquisition

A passive reed-switch rain gauge may provide a dry-contact pulse output without requiring a separate supply for the switch itself. An electronic RS485 rain sensor generally requires a specified electrical power supply.

Always confirm the ordered output version. Do not connect a passive pulse output directly to an RS485 communication port or apply external voltage to an unknown terminal.

2. Rain Sensor Shows Zero Rainfall During Rain

A rain gauge displaying zero rainfall does not necessarily indicate sensor failure. The cause may be related to precipitation intensity, measurement resolution, mechanical operation or communication.

For Tipping Bucket Rain Gauges

A tipping bucket rain gauge accumulates rainwater in a small bucket until the bucket reaches its calibrated tipping point.

If the collected rainfall is insufficient to produce a tip, the instrument may not yet register an additional rainfall increment. This is especially relevant during light rain or drizzle.

When rainfall is clearly occurring but the reading does not increase, check the following conditions:

  • Confirm that rainwater can enter the collection funnel.

  • Inspect the funnel for leaves, insects, sediment or other obstructions.

  • Check whether the tipping bucket is free to move.

  • Confirm that any transport restraint has been removed according to the model instructions.

  • Check the rain gauge leveling indicator where provided.

  • Verify the pulse output or RS485 readings using the appropriate receiving equipment.

For a newly installed rain gauge, transport restraints and installation errors should be considered before assuming the sensor is defective.

For Piezoelectric Rain Sensors

A piezoelectric rain sensor uses the electrical response of a sensing element to raindrop impacts.

If the sensor reports no rainfall, inspect the sensing surface for contamination or physical damage and check that its power supply and data connection are functioning correctly.

The rainfall detection performance depends on the instrument design, its measurement algorithm and the characteristics of the precipitation.

Do not assume that a piezoelectric sensor will identify every isolated small droplet or that a brief splash test is equivalent to a calibrated rainfall test.

3. Tipping Bucket Rain Gauge Reports Inaccurate Rainfall

A tipping bucket rain gauge may under-report or over-report rainfall because of mechanical, installation or data-processing problems.

Before adjusting the instrument, determine whether the deviation is caused by the sensing mechanism or the way the logger interprets its output.

Common Causes of Low Rainfall Readings

Rainfall may be underestimated when the collection funnel is partially blocked, the instrument is not level, the bucket does not tip freely or the receiving device fails to record some tipping events.

High rainfall intensity and wind exposure can also affect the measurement performance of tipping bucket rain gauges.

The extent of these effects depends on the instrument's design, calibration and installation conditions.

Common Causes of High Rainfall Readings

Overestimated rainfall may result from an incorrect pulse conversion factor, repeated counting of one tipping event, electrical interference or abnormal mechanical operation.

For electronic instruments, an incorrect data scaling factor or misunderstanding of the rainfall register may also produce an incorrect displayed value.

Check the Rainfall Resolution

Different rain gauge models may have different resolutions, such as 0.1 mm, 0.2 mm or 0.5 mm per recorded tipping event.

For a pulse-output instrument, accumulated rainfall is commonly calculated as:

Rainfall (mm) = Recorded Tip Count × Rainfall per Tip (mm)

For example, if an instrument is specified as 0.2 mm per tip, 10 correctly recorded tipping events represent 2.0 mm of accumulated rainfall.

This is an illustrative calculation. The receiving device must use the actual resolution of the installed rain gauge.

If the selected sensor has an RS485 output that already provides rainfall measurements, check its Modbus register definition before applying any additional pulse conversion.

4. How to Check Tipping Bucket Mechanical Problems

The tipping mechanism must move freely and consistently for the gauge to record rainfall correctly.

Mechanical problems may arise from foreign material, transport damage, corrosion, incorrect assembly or wear of the moving parts.

Inspect the Funnel and Water Path

Check for leaves, dust, insects and other material that may prevent rainwater from entering or draining through the instrument.

Clean accessible parts according to the manufacturer-approved procedure. Use gentle cleaning methods suitable for the materials and coatings of the instrument.

Check Bucket Movement

Where the manufacturer permits access to the tipping mechanism, visually inspect whether the bucket moves freely and whether any foreign objects obstruct its movement.

Do not bend the bucket, change its balance, force the pivot or modify the tipping mechanism during routine inspection.

Should the Tipping Bucket Be Lubricated?

Lubrication is not recommended unless explicitly specified in the instrument's maintenance instructions.

Oil or grease applied to a tipping bucket pivot can attract dust and dirt, increase mechanical resistance or change the behavior of the mechanism.

The correct maintenance approach is normally to remove contamination and verify free movement according to the product manual.

5. When Does a Rain Gauge Require Calibration?

Rain gauge calibration verifies the relationship between a known precipitation input and the measurement reported by the instrument.

A tipping bucket gauge is typically calibrated according to its collection area, tipping mechanism and specified rainfall resolution.

A calibration check may be appropriate after mechanical damage, unusual measurement deviations or according to the instrument's maintenance program.

Perform a Controlled Rainfall Check

A suitable calibration procedure may involve introducing a known volume of water at a controlled rate and comparing the recorded tipping events with the expected result.

The required water volume, flow rate, measurement duration and acceptable error depend on the rain gauge model and its calibration procedure.

Pouring water rapidly into the funnel is not a reliable general calibration method because it may introduce errors associated with flow rate and the mechanical response of the tipping bucket.

Do Not Adjust Calibration Screws Without Authorization

Some tipping bucket instruments contain adjustment screws that influence the mechanical tipping point.

Changing these adjustments without the correct procedure may alter the factory calibration or cause differences between the two bucket positions.

Mechanical recalibration should only be performed by qualified personnel using the correct model-specific method and suitable reference equipment.

For a NiuBoL rain gauge showing a significant or repeatable error, first verify the installation and logger settings, then consult the applicable product manual or technical support before making mechanical adjustments.

6. Pulse-Output Rain Gauge Has No Signal

A pulse-output tipping bucket rain gauge commonly uses a switch or contact mechanism to generate an electrical event each time the bucket tips.

The receiving equipment must count these events and convert them into rainfall according to the specified resolution.

Check the Receiving Input

Confirm that the rain gauge is connected to an input compatible with its signal type.

A dry-contact reed-switch signal requires suitable event-counting circuitry. It should not be treated as a Modbus RTU signal or connected directly to an unrelated analog input.

Check Wiring and Pulse Counting

Inspect the signal cable, terminals and receiving input configuration.

For a verified passive-contact device, qualified personnel can inspect contact operation using a suitable low-energy test method consistent with the device manual.

Any resistance or continuity measurements should be made with the test circuit safely isolated and according to the instrument's electrical requirements.

Do not apply an external test voltage to a switch or sensor output without confirming its ratings and circuit design.

Check for Duplicate or Missing Pulses

An incorrect event counter configuration may cause one tipping event to be counted several times or some events to be missed.

Check pulse input compatibility, contact debounce handling, signal integrity and the receiving device's actual configuration.

The correct electrical and timing settings depend on the rain gauge and counter interface.

7. RS485 Rainfall Sensor Communication Faults

A rain sensor with an RS485 output normally uses an electronic communication circuit to transmit rainfall measurements to a PLC, RTU, data logger or other compatible receiving equipment.

When an RS485 rain sensor does not provide data, distinguish a communication failure from a valid zero-rainfall measurement.

Observed ProblemRecommended Check
No Modbus ResponseCheck operating power, A/B polarity, serial settings and device address.
Modbus TimeoutCheck communication wiring, sensor status, address and requested registers.
CRC ErrorCheck electrical interference, bus wiring, serial settings and signal integrity.
Valid Zero Rainfall ReadingCheck rainfall conditions, sensing mechanism and measurement interval.
Unexpected Rainfall ValueVerify register interpretation, scaling, measurement unit and sensor output definition.
Intermittent CommunicationInspect power stability, cable routing, grounding and RS485 bus configuration.

Check the Power Supply

Verify that the sensor receives a voltage within the range specified for the exact model and output version.

A functioning data logger does not necessarily prove that the connected rain sensor is powered correctly.

Check the Modbus Settings

Confirm the configured baud rate, parity, device address, supported function code and register addresses.

If several sensors share one RS485 bus, ensure that they have unique device addresses and compatible communication settings.

For wiring guidance, see RS485 Sensor Wiring Method.

Check the Rainfall Register Definition

Rainfall sensors and data acquisition systems may provide measurements such as interval rainfall, accumulated rainfall or rainfall intensity.

These values are not interchangeable.

An interval rainfall register may return to zero at the end of its reporting period. Accumulated rainfall may follow a different reset or storage behavior, depending on the instrument.

If the displayed total unexpectedly returns to zero, check whether the receiving system is reading an interval value, whether a reset command has been issued and how the selected sensor behaves after a power interruption.

The exact register definitions and reset behavior must be confirmed from the corresponding sensor manual.

8. Piezoelectric Rain Sensor Common Problems

A piezoelectric rain sensor detects raindrop impacts through a sensing element that produces an electrical response to mechanical excitation.

Unlike a conventional tipping bucket gauge, a piezoelectric sensor does not rely on a moving bucket to count rainfall.

Abnormal Readings During Vibration

Mechanical vibration can affect impact-based measurements. Sources may include unstable mounting poles, vibrating support brackets and nearby machinery.

Check that the mounting structure is secure and suitable for the instrument.

The sensor should be installed according to its specified orientation and support arrangement.

Contaminated or Damaged Sensing Surface

Dust, deposits or physical damage to the rain-impact surface can affect the instrument's response.

Inspect the surface and clean it only using methods compatible with its coating and housing.

Do not use abrasive materials, strong chemicals or excessive force on the sensing surface.

Communication or Power Failure

For an RS485 piezoelectric rain sensor, check the supply voltage, cable connections and communication settings before assuming the sensing element has failed.

An electronic sensor may respond to communication requests even when its rainfall measurement function has a separate problem. Both communication and sensing performance should be evaluated.

Internal Damage or Water Ingress

If the housing is cracked, a seal is damaged or internal water ingress is suspected, disconnect the equipment according to the applicable safety procedure and contact qualified technical support.

Do not open a sealed sensing assembly or replace internal electronic components during routine field maintenance unless an approved repair procedure is available.

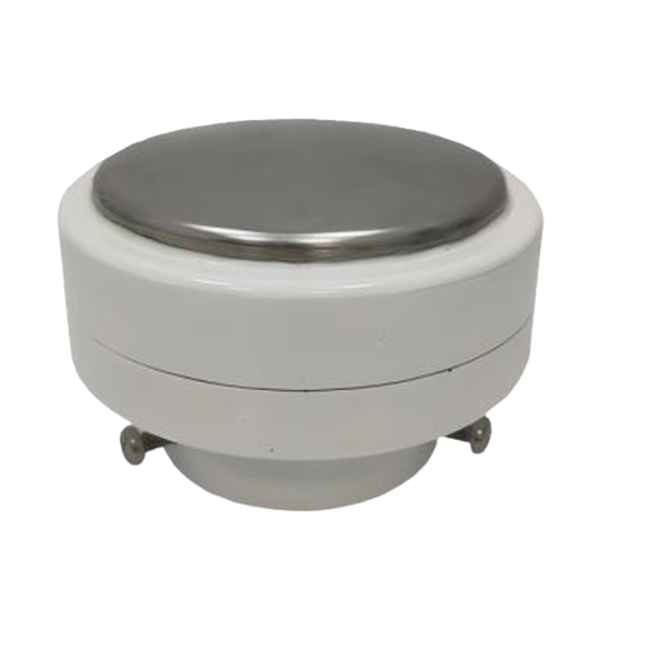

Piezoelectric rain sensor.png

9. Rain Sensor Installation Problems That Affect Accuracy

Rainfall measurement accuracy depends not only on the instrument but also on its location and mounting arrangement.

Obstructions and Wind Exposure

Nearby buildings, trees and other obstacles can affect the amount of precipitation reaching a rain gauge.

Wind can also influence precipitation catch, especially under exposed conditions.

Select an open, representative location according to the applicable rain gauge installation guidance and measurement objective.

Rain Gauge Leveling

Tipping bucket rain gauges typically require appropriate leveling so that the collection funnel and tipping mechanism operate as designed.

Use the instrument's bubble level or specified leveling method where provided.

Piezoelectric sensors may have different leveling and mounting requirements. Follow the manual for the specific instrument rather than applying the same procedure to every rain sensor.

Freezing and Solid Precipitation

A rain gauge intended for liquid precipitation may not measure snow, hail or freezing precipitation correctly without a suitable instrument design or additional equipment.

Water freezing inside a funnel or drainage path can obstruct measurement and may damage unsuitable equipment.

Use a sensor designed for the expected environmental conditions, and follow the manufacturer's winter maintenance requirements.

10. Rain Sensor Troubleshooting Checklist

A structured troubleshooting sequence helps identify the cause before unnecessary parts are replaced or calibration settings are changed.

StepInspectionPurpose
1Identify model and output interfaceSelect the correct electrical and measurement procedure.
2Record the fault and rainfall conditionsDetermine whether the problem is persistent or event-specific.
3Inspect the mounting and sensor exteriorIdentify obstruction, damage, tilt or vibration.
4Check power and cables where applicableIdentify electrical faults.
5Check pulse or Modbus communicationVerify that the receiving device detects the sensor output.
6Verify data conversion and unitsIdentify incorrect pulse resolution or register scaling.
7Perform an approved functional checkAssess sensor response without changing calibration settings.
8Request calibration or technical service if requiredResolve persistent faults using the appropriate model-specific procedure.

For persistent faults, record the sensor model, output version, installation photographs, power supply, communication settings, rainfall readings and observed operating conditions before requesting technical support.

11. Preventive Maintenance for Rain Sensors

Preventive maintenance helps reduce avoidable faults and maintain consistent rainfall monitoring.

For tipping bucket rain gauges, inspect the collection funnel, drainage path, instrument level, cable connections and any accessible moving components according to the manufacturer-approved maintenance procedure.

For piezoelectric rain sensors, inspect the sensing surface, mounting stability, cable condition and exterior sealing.

Maintenance frequency depends on the installation environment. Sites with frequent leaf fall, dust, insects or severe weather may require more frequent inspections than relatively clean locations.

Routine maintenance should not include unnecessary lubrication, mechanical recalibration, firmware replacement or opening sealed electronic assemblies.

Any firmware changes, internal repairs or calibration adjustments should be performed only when required and supported by the applicable model-specific technical procedure.

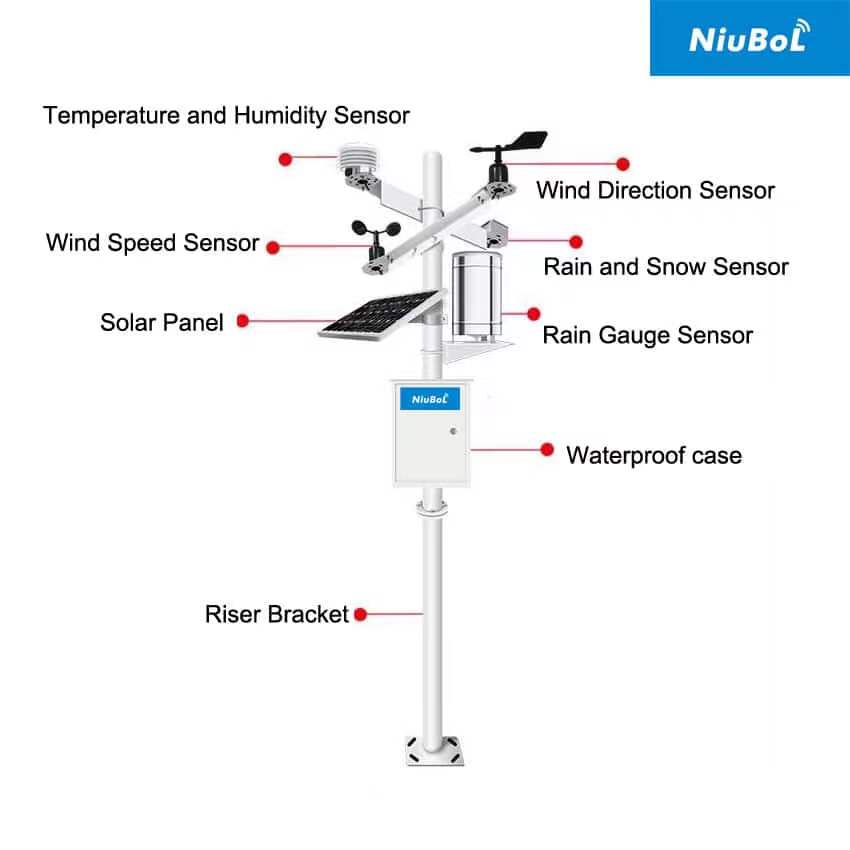

Meteorological Weather Station.jpg

Frequently Asked Questions

Q1. Why does my rain gauge show zero when it is raining?

A1. Possible causes include insufficient rainfall to trigger a tipping event, a blocked funnel, restricted bucket movement, incorrect signal wiring or a data acquisition problem. The correct checks depend on whether the instrument uses pulse or digital output.

Q2. Why does a tipping bucket rain gauge measure less rainfall than expected?

A2. Possible causes include funnel blockage, incorrect leveling, missed pulses, wind-related catch losses and rainfall intensity effects. Check installation and measurement settings before considering calibration adjustment.

Q3. Should I lubricate the tipping bucket mechanism?

A3. Do not apply lubricant unless the manufacturer specifically requires it. Oil and grease may attract contamination and alter the mechanical tipping behavior.

Q4. Can I adjust the rain gauge calibration screws myself?

A4. Mechanical adjustment should only be performed using the correct model-specific calibration procedure and suitable reference equipment. Unapproved adjustment can change the instrument's accuracy.

Q5. Does every tipping bucket rain gauge require external power?

A5. No. Some passive reed-switch rain gauges provide dry-contact pulses without a separate power supply for the sensing switch. Electronic RS485 versions require a compatible power supply. Always check the ordered output version.

Q6. Why does an RS485 rainfall sensor return a Modbus timeout?

A6. Check the power supply, RS485 signal pair, communication settings, device address and supported register request. A timeout is different from receiving a valid zero-rainfall measurement.

Q7. Why can piezoelectric rain sensors report abnormal rainfall during vibration?

A7. Piezoelectric sensors respond to mechanical impacts. Unwanted vibration can influence the detected signal, depending on the sensor design and processing algorithm. Check mounting stability and nearby vibration sources.

Q8. Why did my accumulated rainfall value reset?

A8. Check whether the displayed value is interval rainfall or cumulative rainfall, whether a reset command was issued and how the instrument handles power interruptions. Reset and storage behavior depend on the specific sensor and logger configuration.

NiuBoL Rainfall Sensors and Technical Support

NiuBoL provides rainfall monitoring sensors for meteorological stations, hydrological observation, agricultural monitoring and environmental data acquisition systems.

For tipping bucket measurement, see the NiuBoL Tipping Bucket Rain Gauge. For impact-based rainfall sensing, see the NiuBoL Piezoelectric Rain Sensor.

For model-specific instructions and available technical documents, visit the Rain Sensor Datasheet page.

When requesting troubleshooting assistance, provide the sensor model, serial communication or pulse output version, wiring information, supply voltage, data logger model, fault description and relevant photographs or measurement records.

Related recommendations

Sensors & Weather Stations Catalog

Agriculture Sensors and Weather Stations Catalog-NiuBoL.pdf

Weather Stations Catalog-NiuBoL.pdf

Agriculture Sensors Catalog-NiuBoL.pdf

Water Quality Sensor Catalog-NiuBoL.pdf

Related products

Tell us your requirements, Let's discuss more about your project.we can do more.

Name*

Tel*

Email*

Company*

Country*

Message


online
Contacts
Email
Top
XRain sensor common faults and repair methods-Technical Support-Automatic Weather Stations_Industrial, Agricultural, Water & Environmental IoT Monitoring Solutions—NiuBoL

Screenshot, WhatsApp to identify the QR code

WhatsApp number:+8615367865107

(Click on WhatsApp to copy and add friends)

Open WhatsApp

The WhatsApp ID has been copied, please open WhatsApp to add consultation details!
WhatsApp
