Wind direction sensor installation tutorial

A wind direction sensor is a device used to detect wind direction and is commonly used in meteorological observations, wind power generation, aviation and navigation. Proper installation of the wind sensor is very important to ensure the accuracy of the data and the longevity of the device. The following is a detailed installation tutorial:

1. Preparation

 Prepare tools: screwdriver, spanner, insulating tape, screws, etc.

 Check the manual: Before installation, read the manual of the wind direction sensor carefully to understand its working principle, technical parameters and installation requirements.

 A long ladder or scaffolding may be required.

 2. Choose the installation location

 Open and unobstructed: Choose an open area and make sure that there are no surrounding objects such as high-rise buildings, trees, etc. that may block the wind source.

 Representative: The installation point should be representative of the meteorological conditions in the wider surrounding area.

 Security: Consider the security of the installation location to avoid equipment theft or damage.

 3. Installation of wind direction sensor

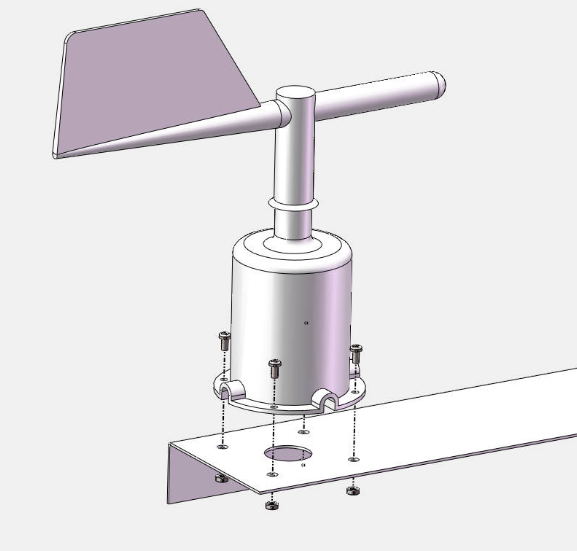

3.1. Fixing the base: Fix the base of the wind sensor to the selected mounting point, usually with screws and nuts to a bracket or wall.

3.2. Connect the wires: Connect the sensor's terminals to the pre-prepared wires to ensure a firm connection and good contact.

3.3. Adjust the direction: After installation, adjust the pointer of the wind direction sensor.

When installing the wind direction sensor, if there is a white fixed south marking point on the housing, the purpose of this marking point is to help the user to orientate the sensor to the south correctly. During the actual installation, the following steps should be followed to ensure the correct orientation of the wind direction sensor:

3.3.1. Prepare a compass: Before installation, prepare an accurate compass.

3.3.2. Find the geographic south direction: Use the compass to determine the south direction of your location.

3.3.3. Align the white Geo-South marking point: Align the white Geo-South marking point on the wind sensor housing with the direction of South as determined on the compass. This step ensures that the front of the sensor housing is always facing south.

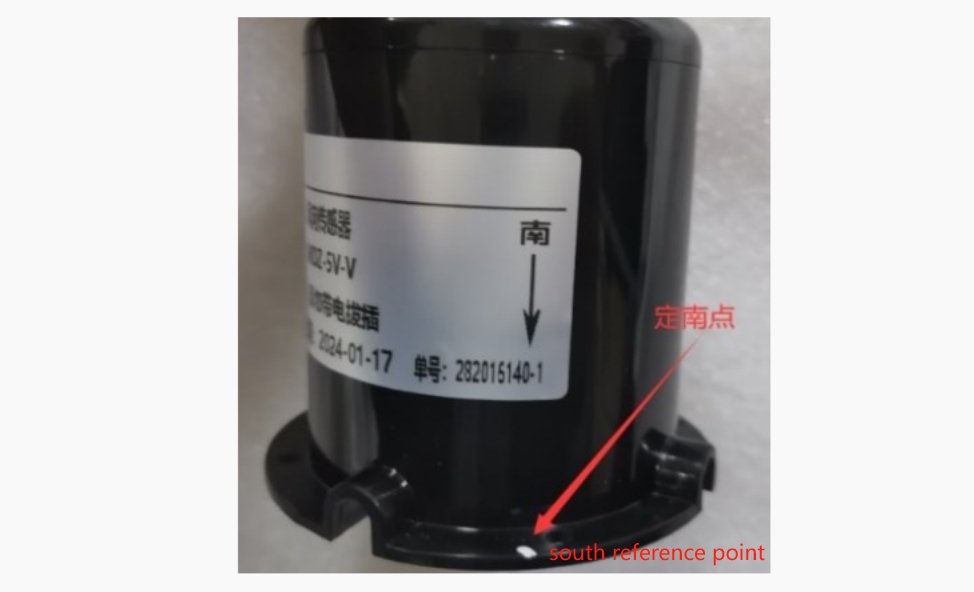

The downward arrow indicated on the sensor label points to the white south reference point (as shown in the figure above),and this reference point needs to align with the actual geographical south direction.

3.3.4. Secure the Sensor: Once the white south marker is aligned to the south, the wind sensor can be secured to the base to ensure that it does not change direction due to wind action.

3.3.5. CHECK ORIENTATION: After securing the sensor, check the compass again to confirm that the wind sensor is orientated correctly. If adjustment is needed, gently reposition the white south fixing marking point on the sensor housing until the south pointing point on the compass is exactly the same as the white south fixing marking point on the sensor housing.

 4. Turn on the power

Depending on the model of the sensor, it may need to be powered on or powered only by the battery. If the sensor is powered on, ensure that the power supply is stable and that appropriate lightning protection is in place.

 5. Test the wind direction sensor

After switching on the power supply, carry out a test to confirm that the wind direction sensor works properly and gives accurate readings.

 6. Protection measures

 Lightning protection: Consider lightning protection measures during installation to avoid lightning damage to the equipment.

 Dust and rain protection: Equip the sensor with a protective cover as needed to prevent dust and rain from intruding.

 7. Regular maintenance

Regular maintenance should be carried out after installation to check whether the sensor is working properly and whether the connection is firm.

 Precautions

 During installation, please observe the relevant national laws and regulations and industry standards.

 If you have any questions during installation, it is recommended that you consult a professional or equipment supplier.

Proper installation of the wind direction sensor is critical to obtaining accurate wind direction data. Ensure that these steps are followed during the installation process to ensure that the sensor is able to provide reliable weather information.

This is a tutorial on how to install a wind direction sensor. If you have any questions during the installation process, please feel free to ask and we will answer them as soon as possible.
