Evaporation Sensor Resolution and Accuracy: Define the Level-Change Task

Quick Answer

Evaporation sensor resolution and accuracy describe different limits. The NiuBoL NBL-W-ES resolves water level in 0.1 mm increments, while its accuracy specification is +/-0.5% at 0 to 50 C. Neither figure alone establishes the smallest trustworthy evaporation rate. Define the level change, observation period and acceptable error before selecting the instrument and logger settings.

The instrument observes a level; the system calculates a change

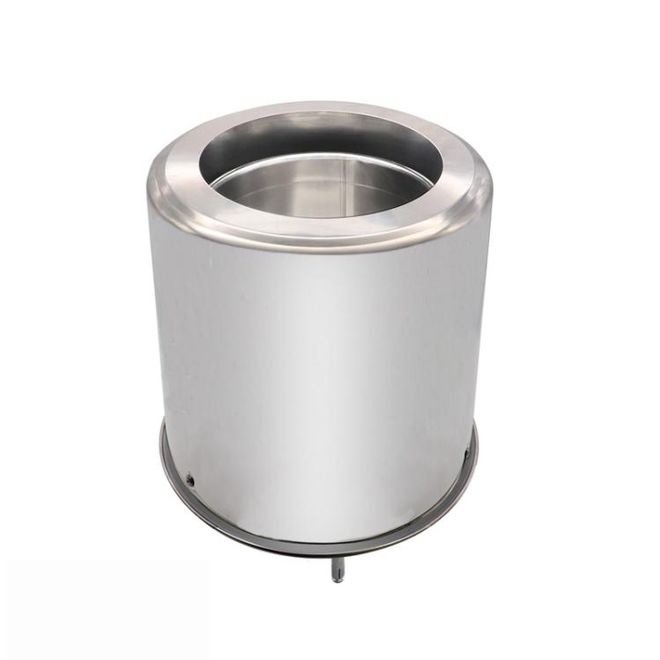

The NBL-W-ES evaporation sensor monitors the water surface in an evaporation pan or tank. A monitoring system compares observations over time to calculate evaporation under defined conditions. It does not directly measure vapor flow or crop evapotranspiration simply because it is installed at an agricultural station.

The useful procurement question is therefore the change the project needs to distinguish. A research installation investigating small hourly changes has a different requirement from a station recording daily totals. Selecting a wide level range or displaying many decimal places does not answer that question.

Do not convert an undefined percentage into millimeters

A percentage error needs a reference quantity. Percentage of reading and percentage of full scale are different specifications. Before approving a requirement stated in millimeters, obtain the applicable reference, test method and conditions for the delivered sensor. Without that reference, the percentage cannot justify an absolute-error claim.

Similarly, the accuracy of a difference between two level readings is not automatically equal to one output increment. The readings can contain repeatability effects, offset changes and environmental influences. Some contributions may be shared between observations and others may vary; the project needs an appropriate evaluation rather than an unsupported error-cancellation assumption.

Short intervals can make small level steps look like large rate changes

Consider only the arithmetic of a hypothetical 0.1 mm level change. Over one hour it corresponds to 0.1 mm/h. Over ten minutes, the same change corresponds to 0.6 mm/h. This example illustrates the effect of the time denominator; it is not a measured evaporation rate or a statement of instrument accuracy.

Dividing small successive changes by short periods can make quantization or short-term level movement more visible in a rate plot. Faster polling does not improve the underlying level resolution. Choose a recording and reporting interval that suits the observation task, while retaining enough information to investigate disturbances.

Test the level channel before judging the evaporation calculation

Use a suitable reference and an agreed procedure to assess the level observations relevant to the project. Record the reference method, water conditions, comparison points and repeat readings. A container that appears to hold a steady level is not itself a traceable reference, and an electronic display that changes smoothly is not evidence of accuracy.

Then test the receiving system separately. Confirm whether its field represents instantaneous level, accumulated evaporation or a calculated rate. Check units and scaling on the selected RS485 or analog configuration. For a Modbus RTU host, obtain confirmation of the supported sensor protocol and register definitions before selecting the digital version. A PLC or RTU should not treat a level value in millimeters as a rate in mm/h merely because both fields accept a number.

Keep environmental limits and water transfers visible

The accuracy condition and operating-temperature range describe different things. Operation below zero does not establish a liquid-water evaporation observation or qualify a pan for ice and snow. Likewise, a stationary reading during frozen conditions is not proof that evaporation is zero. Define the valid observation conditions for the installed arrangement.

Rain, refilling, drainage, leakage and overflow affect the pan level independently of evaporation. The logger calculation must account for relevant transfers or flag the affected period. Those corrections cannot recover unknown water loss or compensate for an unverified level channel. Instrument evaluation and water-balance accounting are both necessary, but they answer different questions.

Project Decision FAQ

Q1. Does 0.1 mm resolution mean +/-0.1 mm accuracy?

No. Resolution describes the output increment. Accuracy and the validity of a calculated level change require the applicable error specification, conditions and assessment method.

Q2. Can the +/-0.5% figure be converted directly to a millimeter error?

Only after its reference basis is established. Confirm whether it applies to a reading, span or another defined quantity and obtain the relevant test conditions. Do not assume a basis from the percentage alone.

Q3. Will polling every second give an accurate hourly rate?

Not by itself. Rate calculations depend on valid level changes and correctly timed intervals. Frequent polls do not remove output quantization, water movement or unrecorded transfers.

Q4. Does the low-temperature operating limit prove frozen-pan performance?

No. An electronics operating limit is not a qualification of evaporation measurement in ice or snow. Define the observation method and required environmental configuration separately.

Q5. What should a measurement-performance enquiry include?

Send the expected level changes, observation intervals, pan arrangement, temperature conditions and required error limit. NiuBoL can review the instrument and output configuration; specify any reference testing and acceptance work as part of the evaluation.

Summary

Evaluate evaporation sensor resolution and accuracy against a defined level-change task. Confirm the error basis, distinguish operating limits from accuracy conditions, and test the receiver's calculation. A clear observation interval and valid water balance are more useful than extra displayed decimals.
