Foundation of Smart Agriculture: NiuBoL Soil Moisture Monitoring Station Principle, Application & Manufacturer Advantages

1. Core Concept & Working Mechanism of Soil Moisture Monitoring Station

Soil moisture is an important indicator measuring soil water status, directly related to crop growth health and rational water resource utilization. Soil moisture monitoring station is the core system for digitizing and automating this key information.

What is a Soil Moisture Monitoring Station?

Soil moisture monitoring station is an automatic monitoring system integrating collection, storage, transmission, and management of soil temperature/humidity, soil conductivity, soil pH value, and other data. It is an unattended field collection system capable of uninterrupted, high-precision acquisition of key parameters at soil depths.

Soil Moisture Monitoring Station Working Mechanism: Deep Application of IoT Technology

NiuBoL soil moisture monitoring station working mechanism is a typical Internet of Things (IoT) application system:

• Data Acquisition End (Sensors): Deploy soil moisture sensors, soil temperature sensors, soil salinity sensors, etc., at different soil depths. These sensors use respective measurement technologies to convert soil physical and chemical state parameters into electrical signals.

• Data Aggregation & Processing (Collector): NiuBoL soil data collector receives, amplifies, and digitizes signals from various sensors.

• Information Transmission (Communication System): Collector achieves wireless remote connection via built-in 4G module, automatically and real-time transmitting processed data to cloud monitoring center.

• Management & Service (Cloud Platform): Cloud monitoring platform establishes information processing system integrating automatic monitoring, information management, network query, analysis, warning, and forecasting, providing data visualization, curve analysis, report export, and other services.

This closed-loop mechanism allows users to real-time grasp “underground information” in fields regardless of location.

2. NiuBoL Soil Moisture Monitoring Station Structure Analysis & Technical Indicators

NiuBoL soil moisture monitoring station (monitor) consists of six major parts, ensuring reliable operation and data accuracy in field environments.

Soil Moisture Monitoring Station Hardware Composition & Functions

Soil Moisture Monitoring Station Core Monitoring Indicators & High-Precision Parameters

NiuBoL monitoring station monitoring indicators are highly customizable to meet different user needs.

1. Conventional Parameters of Soil Moisture Monitoring Station

These parameters are the foundation for guiding agricultural production and soil research:

• Soil temperature: Range -50 to +80°C, resolution 0.1°C, accuracy ±3°C.

• Soil moisture (water content): Range 0–100%, resolution 0.1%, accuracy ±3%.

• Soil salinity: Range 0–5500 mg/L, accuracy ±10%.

• Soil conductivity (EC): Range 0–10000 μS/cm, accuracy ±10%.

• Soil pH value: Range 0–14, accuracy ±0.1.

• Others: Soil NPK content, soil heat flux, soil tension.

2. Supplementary Parameters of Soil Moisture Monitoring Station

For more comprehensive understanding of farmland microclimate environment, expandable monitoring of air temperature, air humidity, illuminance intensity, groundwater level and quality, etc.

3. Strategic Applications & Value of Soil Moisture Monitoring Station

Soil moisture monitoring station application value spans agricultural production, ecological protection, and disaster resistance/reduction.

1. Guiding Modern Agricultural Production: Precision Water & Fertilizer Management

Modern agriculture pursues resource utilization efficiency and crop high quality. Real-time data provided by moisture station is prerequisite for precision management:

• Precision Irrigation Decision: By monitoring soil moisture change trends at different depths, guide farmers or water-fertilizer integration systems to irrigate timely and appropriately when crops need, avoiding excessive irrigation causing water waste and nutrient loss.

• Scientific Fertilization Basis: Soil conductivity (EC) and soil NPK content reflect soluble salt and nutrient abundance/deficiency in soil. Monitoring station data guides reasonable fertilization, preventing excess or deficiency, ensuring crop healthy growth.

• Seedling & Planting: Monitor soil temperature, providing scientific basis for seedling, sowing, and other farming activities, ensuring conducted under suitable temperature conditions.

2. Soil Moisture Monitoring Warning: “Thousand-Mile Eye” for Drought Resistance & Disaster Reduction

When facing extreme weather, moisture station is key for formulating scientific drought resistance scheduling plans.

• Real-Time Warning: When soil moisture below preset threshold, monitoring platform immediately issues warning information.

• Plan Formulation: Based on long-term accumulated moisture data, more intuitively understand soil moisture change trends and drought development speed, formulate scientific drought resistance scheduling plans in advance, providing correct strategic decisions for drought relief, maximizing disaster loss reduction.

3. Ecological Environment Monitoring & Research

Ecosystem health closely related to soil moisture.

• Ecosystem Assessment: In grassland, wetland, forest, and other ecosystem monitoring, instrument monitors soil temperature/humidity and other parameters, providing scientific data for assessing ecosystem water cycle, soil/water conservation capacity, and environmental health status.

• Scientific Research: Provides long-term, high-reliability scientific monitoring data for climate, geology, meteorology, geomorphology, pollution source research, e.g., studying moisture impact on geological disaster occurrence.

4. Advantages & Strengths of NiuBoL Monitoring Station

NiuBoL soil moisture monitoring station effectively achieves reliable, long-term monitoring in field environments with multiple technical advantages.

• High-Precision Reporting: Adopts high-precision sensors, ensuring high accuracy of soil moisture, temperature, pH, and other reporting data.

• Real-Time & Remote: Real-time collection of soil moisture information, automatic wireless transmission to monitoring platform via 4G module, users can check anytime anywhere.

• Strong Unattended Capability: Integrated power supply with 60 W solar and 30 AH lithium battery, good lightning protection and shock resistance, suitable for long-term field work, significantly reducing manual inspection costs.

• Expandability & Customization: Customizable monitoring indicators according to user needs, expandable to water-fertilizer integration control, water-saving irrigation linkage, and other functions, maximizing information value of moisture data.

• User-Friendly Data Visualization: Cloud platform supports complete user login management, real-time query, EXCEL table file export, and multiple curve user-friendly display, convenient for user in-depth analysis and storage.

5. Installation & Usage Specifications for NiuBoL Soil Moisture Monitoring Station

Correct installation is prerequisite for ensuring data accuracy, especially sensor deployment.

1. Outdoor Installation Steps

• Fix bracket and collector: Erect overall structure through fixed bracket, securely fix collector on bracket with hoop and screws.

• Solar panel installation: Fix solar panel, adjust angle facing due south for maximum sunlight charging time.

• Sensor access: Connect sensor external connection lines to corresponding channel interfaces of collector.

• Grounding protection: Ensure equipment has good grounding protection, further enhancing lightning protection performance.

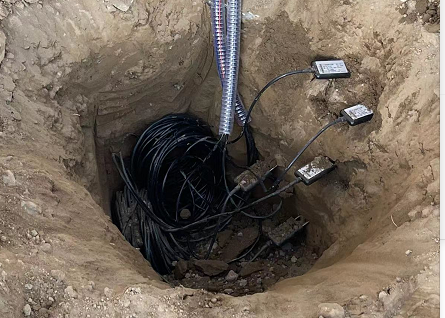

2. Sensor Soil Deployment Key Points

Sensor burial position and method crucial:

• Vertical pit digging: According to measurement needs, vertically dig pit with diameter greater than 20 cm.

• Horizontal insertion: At predetermined depths (e.g., 10 cm, 20 cm, 40 cm, etc.), horizontally insert sensor (e.g., steel needle part) into pit wall.

• Tight contact: Fill and compact pit, ensuring tight contact between sensor electrode and soil — key to guaranteeing measurement accuracy. Higher sensor probe-soil adhesion means more reliable data.

3. Fault Troubleshooting & Maintenance Recommendations

• Data abnormality: If analog output reading obviously too high/low, check if sensing port has dirt or debris, timely wipe with clean cloth.

• No data output: If display 0 or out of range, check if wiring correct and secure to rule out collector unable to acquire signal.

• Regular inspection: Since equipment long-term in field, regularly inspect if sensor head exposed, connection lines damaged, ensuring system continuous stable operation.

Where to Find Soil Moisture Monitoring Station Manufacturer?

NiuBoL is a brand of Changsha Zoko Link Technology Co., Ltd., a professional manufacturer specializing in unattended systems integrating soil data collection, transmission, and management.

Official Website: https://www.niubol.com/

Company Address: Changsha City, Hunan Province, China

Contact Information:

• Email: sales@niubol.com

• WhatsApp/Tel: +8615367865107

• Consumer Hotline: +8618073152920

Choosing NiuBoL means:

• Product Quality Guarantee: Equipment complies with industrial standards, good lightning protection, shock resistance, and environmental adaptability.

• Customization Service: Flexible customization and adjustment according to user specific project needs (e.g., monitoring parameters, communication method, power configuration).

• Technical Support: Provides professional installation guidance, fault troubleshooting, and cloud platform maintenance services.

NiuBoL provided soil moisture monitoring solutions are powerful support for promoting modern agriculture toward digitization and precision.

Summary:

NiuBoL Soil Moisture Monitoring Station achieves real-time, unattended monitoring of key parameters such as soil temperature/humidity, pH, conductivity through high-precision sensors, solar power, and 4G wireless transmission. Its core value lies in providing reliable, continuous data guarantee for precision water & fertilizer management in agricultural production, scientific drought resistance/disaster reduction scheduling, and important ecological environment research.

Do you need specific contact information for NiuBoL manufacturer or further understand how to customize monitoring parameters according to your actual needs? Feel free to visit their official website or contact them directly using the details above!
