What Is a Rain Gauge Sensor? Types & Working Principles | NiuBoL

A rain gauge sensor is an instrument used to measure precipitation, particularly the amount of rainfall received at a specific location over a defined period. Rainfall is normally expressed as a depth in millimeters (mm) or inches, while rainfall intensity is commonly expressed in millimeters per hour (mm/h).

Rain gauges are used in meteorological stations, agricultural irrigation monitoring, hydrological observation, drainage systems and environmental research. Electronic rainfall sensors convert precipitation measurements into electrical signals or digital data that can be collected by a compatible data logger, PLC or weather station.

The main types include tipping bucket, weighing, piezoelectric and optical rain gauges. Traditional manual rain gauges are also widely used, but they require an observer to read and record the collected precipitation.

The appropriate instrument depends on the required measurement, precipitation conditions, installation environment and data collection method.

What Does a Rain Gauge Sensor Measure?

A rain gauge measures the amount of precipitation reaching its collection area or measurement surface. The result is expressed as an equivalent depth of water over a horizontal area.

For example, 1 mm of rainfall corresponds to 1 liter of water per square meter, assuming the rainfall is distributed uniformly and there are no losses.

Rainfall depth describes precipitation amount. Rainfall intensity describes how quickly the rain falls. These are different measurements.

For example, if a rain gauge records 6 mm of rainfall during two hours, the average rainfall intensity over that period is 3 mm/h. The actual intensity may have varied throughout the event.

Rainfall measurements describe precipitation at the instrument location. They do not directly measure the amount of water infiltrating into soil, entering a reservoir or becoming available to crop roots.

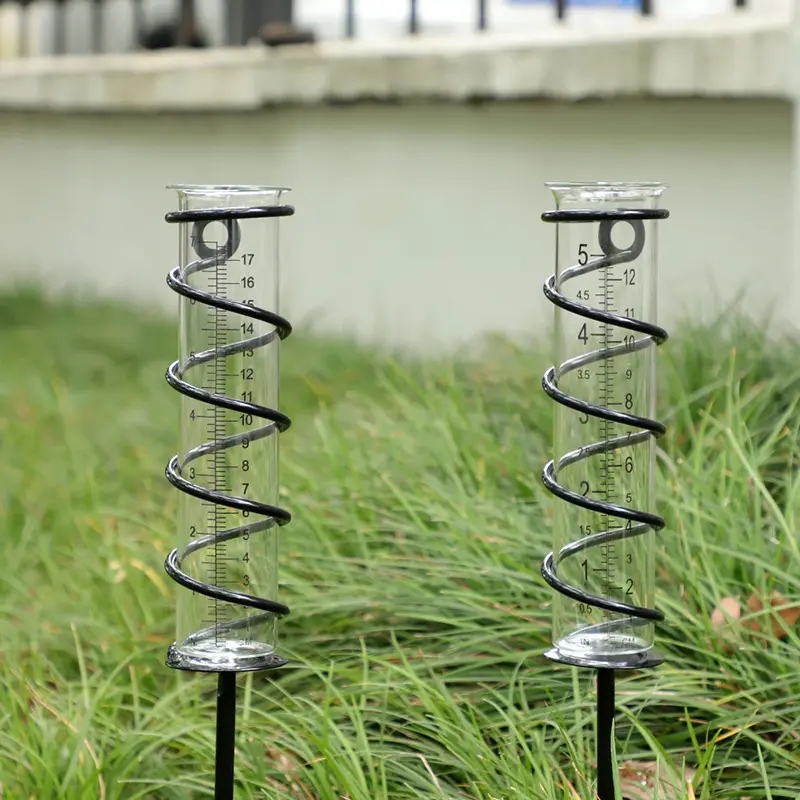

How Does a Traditional Manual Rain Gauge Work?

A traditional manual rain gauge collects rainwater through an opening with a defined collection area. The water is stored in a container and measured by an observer using a calibrated scale or another suitable measurement procedure.

Some manual gauges use a funnel and a narrower graduated measuring cylinder to improve the readability of small rainfall amounts.

After the measurement is recorded, the collected water is emptied according to the observation procedure so that a new measurement period can begin.

Manual gauges can be useful for small observation sites, education and reference comparisons. However, the frequency of their records depends on when measurements are taken.

A traditional measuring cylinder and an electronic rain gauge both report rainfall depth, but their collection and recording methods differ.

What Are the Main Types of Rain Gauge Sensors?

Different precipitation sensors use different physical measurement principles. Some collect precipitation, while others detect rainfall without using a conventional collection bucket.

1. Tipping Bucket Rain Gauge

A tipping bucket rain gauge uses a collection funnel to direct water into a calibrated two-compartment tipping mechanism.

When one compartment collects the required quantity of water, it tips and empties. The second compartment then receives the incoming water.

Each tip generates a detectable event. A pulse counter or electronic transmitter uses the recorded events to determine rainfall accumulation.

Rainwater Collection → Bucket Tipping → Event Detection → Rainfall Data

The tipping bucket mechanism is widely used in automatic weather stations because it can provide electronically recorded rainfall observations with a relatively straightforward mechanical arrangement.

What Does 0.2 mm per Tip Mean?

A rain gauge with a resolution of 0.2 mm per tip records one calibrated tipping event for each equivalent 0.2 mm increment of collected precipitation.

The 0.2 mm value represents rainfall depth, not water volume. The actual volume required to produce a tip depends on the gauge's collection area and calibration.

For a pulse-output rain gauge:

Rainfall (mm) = Valid Tip Count × Rainfall per Tip (mm)

For example, 10 valid tips from a 0.2 mm per tip gauge represent 2.0 mm of rainfall.

Tipping bucket rain gauges can be affected by high rainfall intensity, mechanical friction, funnel blockage, wind and incorrect leveling. The instrument's published accuracy should be interpreted according to the stated measurement conditions.

For more information about tip resolution, rainfall calculations and accuracy, read Tipping Bucket Rain Gauge: Working Principle and Application Value.

2. Weighing Precipitation Gauge

A weighing precipitation gauge measures the mass of collected precipitation in a container. The measured mass is converted into an equivalent precipitation depth using the collection area and an appropriate measurement relationship.

Unlike a tipping bucket gauge, a weighing instrument can record changes in collected mass without relying on individual bucket tipping events.

Certain weighing precipitation gauges can be configured for liquid and solid precipitation, including snow, when equipped and operated appropriately.

Measurement quality can be influenced by wind, vibration, temperature, precipitation collection conditions and the instrument's weighing mechanism.

3. Piezoelectric Rain Sensor

A piezoelectric rain sensor detects mechanical impacts caused by raindrops striking a sensing surface.

The sensing element produces an electrical response to the impacts, and the sensor electronics process the signals to estimate rainfall-related measurements.

Piezoelectric rain gauges do not require a conventional tipping bucket mechanism. This can reduce maintenance associated with mechanical tipping components.

However, measurement performance can depend on rain characteristics, mounting stability, vibration and the instrument's signal-processing method.

The absence of a moving bucket does not mean that a piezoelectric rain sensor is automatically more accurate under every precipitation condition.

4. Optical Rain Gauge and Optical Disdrometer

Optical precipitation instruments use a light source and detector to identify the passage of raindrops through a defined sensing region.

Depending on the instrument design, droplets passing through the optical measurement area change the detected light through attenuation, interruption or scattering.

An optical disdrometer may use this information to estimate raindrop size, fall velocity and precipitation characteristics. The actual measurable quantities depend on the instrument's optical geometry and processing algorithm.

Optical systems may require appropriate maintenance of optical surfaces and can be affected by contamination, alignment and other environmental conditions.

Comparison of Rain Gauge Sensor Technologies

No single rain gauge type is best for all monitoring applications. The appropriate instrument depends on precipitation type, expected intensity, required measurement performance, environmental conditions and data collection requirements.

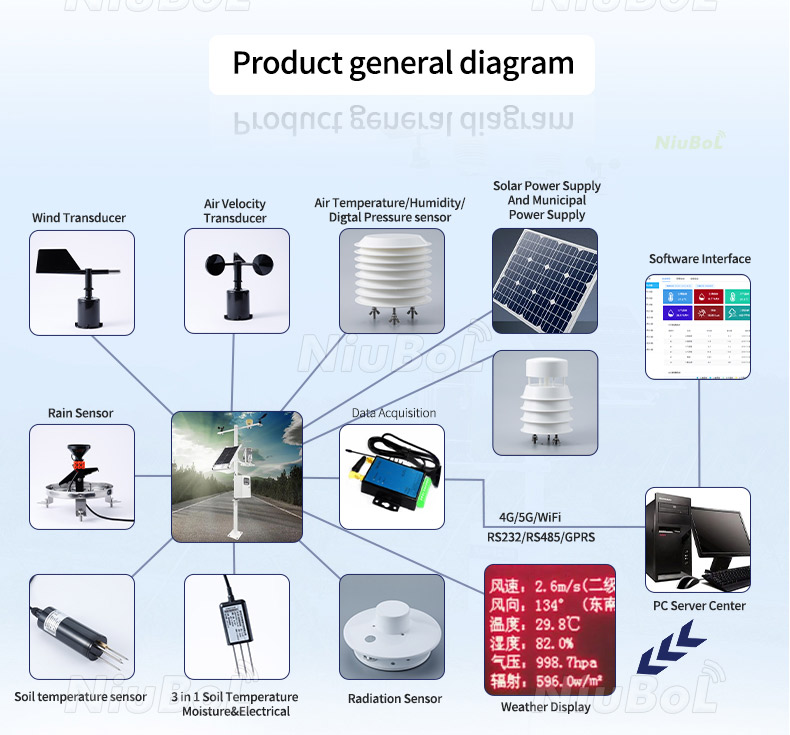

How Does an Electronic Rain Gauge Connect to a Weather Station?

An electronic rain gauge supplies a rainfall-related signal to compatible receiving equipment. Depending on the sensor version, the interface may be a pulse output, RS485 Modbus RTU or another specified output type.

For a passive pulse rain gauge, a compatible counter records the tipping events and converts them into rainfall using the specified resolution.

For an RS485 Modbus RTU rain sensor, a PLC, RTU or data logger reads the available rainfall registers using the correct device address and serial communication settings.

Rain Gauge Sensor → Pulse / RS485 Output → Data Logger → Monitoring Platform

The sensor's rainfall output is not automatically equivalent to a wireless or Internet connection. Remote transmission through 4G, Ethernet or Wi-Fi requires suitable data acquisition and communication equipment.

For RS485 instruments, distinguish interval rainfall, cumulative rainfall and rainfall intensity. The available values and reset behavior depend on the specific sensor and register documentation.

Where Are Rain Gauge Sensors Used?

Meteorological Weather Stations

Rain gauges are common components of automatic weather stations. Rainfall measurements can be recorded alongside wind speed, wind direction, air temperature, relative humidity and atmospheric pressure.

Long-term precipitation observations help describe rainfall patterns and provide information for meteorological and climate studies.

Agricultural Irrigation Monitoring

Rainfall data can help agricultural operators evaluate precipitation events and review irrigation schedules.

However, measured rainfall is not identical to the amount of water stored in the crop root zone. Runoff, infiltration, drainage and evaporation also influence soil water availability.

For soil-based irrigation decisions, rainfall data may be used together with appropriate soil moisture measurements.

Hydrology and Water Resource Monitoring

Rain gauges support watershed observations, reservoir monitoring and hydrological research. Precipitation measurements provide information that can be combined with river level, water flow and other hydrological data.

Rainfall information may also serve as an input to flood monitoring and forecasting systems. A rain gauge alone does not independently predict flooding or determine the required warning action.

Urban Drainage and Environmental Research

Precipitation observations are used in stormwater studies, urban drainage monitoring, environmental observation and scientific research.

For these applications, the measurement interval and accuracy requirements should match the intended analysis.

How to Choose a Rain Gauge Sensor

Selecting a rainfall sensor begins with identifying the precipitation measurement required by the monitoring project.

For unattended outdoor stations, maintenance access and data reliability are important considerations. A highly sensitive instrument will not necessarily provide useful long-term records if it is installed incorrectly or cannot be maintained.

For available models, see the NiuBoL Rain Gauge Sensors product category.

Rain Gauge Installation and Measurement Accuracy

The location and installation of a rain gauge can affect the amount of precipitation collected or detected.

Obstacles such as buildings and trees can change local wind flow and precipitation exposure. Wind may cause rainfall undercatch, while incorrect leveling can affect the operation of a tipping bucket mechanism.

For tipping bucket gauges, accessible collection funnels and drainage paths should be inspected periodically for insects, leaves and other debris.

Piezoelectric sensors require suitable mounting stability and appropriate care of the impact-sensing surface. Optical instruments may require cleaning of their optical measurement surfaces.

Snow and freezing precipitation require special consideration. A rain gauge designed only for liquid precipitation should not automatically be used to measure snowfall without suitable equipment.

For common faults, wiring checks and maintenance procedures, see Rain Sensor Common Faults and Troubleshooting Methods.

Frequently Asked Questions

Q1. What is a rain gauge sensor used for?

A1. A rain gauge sensor measures precipitation for meteorological stations, agricultural monitoring, hydrology, water resource management and environmental research.

Q2. What is the difference between a rain gauge and a rainfall sensor?

A2. Rain gauge is a general term for an instrument measuring precipitation. Rainfall sensor often refers to an electronic device that converts rainfall detection or measurement into an electrical or digital output. The terminology can overlap.

Q3. How does a tipping bucket rain gauge work?

A3. It collects rainwater through a funnel and directs it into a tipping mechanism. Each calibrated tipping event is detected and counted to determine accumulated rainfall.

Q4. What does 0.2 mm per tip mean?

A4. Each valid tipping event represents an equivalent rainfall depth of 0.2 mm over the specified catchment area. It is a rainfall depth, not a water volume expressed in millimeters.

Q5. Can a rain gauge measure rainfall intensity?

A5. Yes. Rainfall intensity can be calculated from the accumulated rainfall during a defined interval or estimated from the timing of tipping events, depending on the instrument and data processing method.

Q6. Can a rain gauge sensor transmit rainfall data remotely?

A6. A compatible data logger or IoT gateway can collect rainfall sensor outputs and transmit the measurements to a remote platform. A standard wired rain gauge should not be assumed to have built-in cellular communication.

Q7. Can every rain gauge measure snow?

A7. No. Many standard tipping bucket rain gauges are intended for liquid precipitation. Snow or freezing precipitation may require a suitable weighing gauge, heated instrument or another appropriately designed precipitation sensor.

Rain Gauge Sensors from NiuBoL

NiuBoL provides rainfall monitoring instruments for meteorological observation, agricultural weather stations, hydrological monitoring and environmental data acquisition systems.

Available product types include the Tipping Bucket Rain Gauge and Piezoelectric Rain Sensor, with measurement and output configurations depending on the selected model.

For selecting a rain gauge, specify the required precipitation type, rainfall resolution, measurement interval, output interface, supply voltage, data logger compatibility and installation environment.

See the Rain Gauge Sensor Product Range for available instruments.
