NiuBoL Doppler Flow Monitoring Station: Full Guide to Installation Specifications and Fault Prevention

The Core of Smart Water Conservancy: Technical Logic of Doppler Flow Monitoring

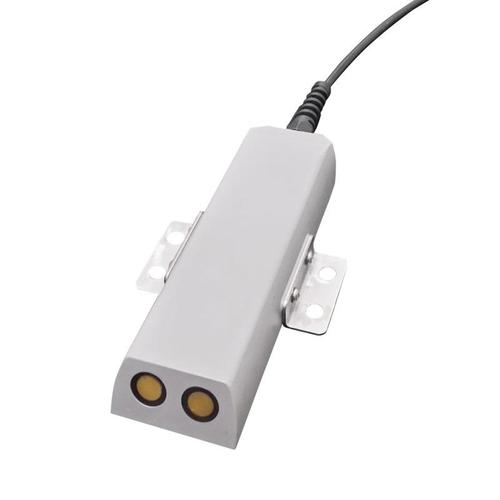

In modern water conservancy management and industrial drainage monitoring, the accuracy of flow data is the foundation of decision-making. Unlike traditional mechanical velocity meters, NiuBoL Doppler velocity meter uses the Doppler effect in physics for measurement.

When there is relative motion between the ultrasonic wave source and the observer (sensor and impurities/bubbles in water), the received frequency changes. By measuring this frequency shift, the system can accurately calculate the instantaneous flow velocity of the fluid. Combined with the built-in high-precision pressure sensor for water level monitoring and modeling of river cross-section geometry, the system can real-time convert to instantaneous flow and accumulated flow.

This electronic measurement method (non-contact in terms of rotating parts) has significant advantages such as no mechanical wear, low starting flow velocity, and wide range coverage, making it the preferred solution for open channel, river, and non-full pipe metering monitoring at present.

Functional Features and Core Parameters of NiuBoL Doppler Velocity Meter

As a high-performance monitoring device, NiuBoL fully considers the harsh requirements of long-term immersion in the field and complex fluid environments in its design.

1. Industrial-Grade Design and High Reliability
   The device shell adopts high-strength ABS engineering plastic, which is not only sturdy and impact-resistant but also has excellent chemical stability, effectively resisting corrosion from various water bodies. The full electronic design has no mechanical moving parts, eliminating measurement errors caused by mechanical aging or sediment jamming, ensuring long-term stability and reliability.

2. Multi-Dimensional Parameter Monitoring
   Not just flow, NiuBoL system is an integrated hydrological perception terminal:
   Velocity Monitoring: Range up to 0.03~5m/s, accuracy up to ±1.0%.
   Water Level Monitoring: Real-time sensing of water depth changes with accuracy of 0.3%.
   Temperature Monitoring: Built-in high-precision thermal element, real-time capture of water temperature dynamics, providing support for scientific analysis.

3. Communication and Protection System
   The device adopts standard ModBus-RTU communication protocol, with data transmission through RS485 interface, having extremely strong anti-interference capability, supporting long-distance wired transmission or cloud access with wireless gateway. Its protection level reaches IP68, paired with high-quality vent cable, supporting long-term immersion in water without fear of leakage.

Stringent Installation Specifications: Key to Ensuring "Long-Term Stability"

Even with excellent device performance, improper installation is the main cause of monitoring failure. NiuBoL summarizes the following core installation precautions, recommended for technicians to strictly implement.

Underwater Deployment Position Selection

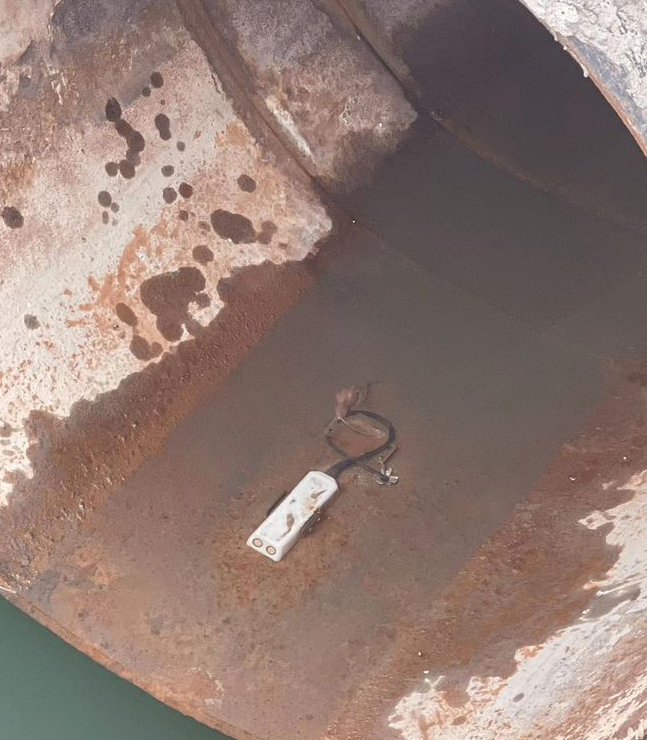

• Normal installation should ensure the velocity meter is at least 20cm below the lowest water level. If limited by terrain, it must not be lower than 5cm to avoid the device being exposed above the water surface causing measurement signal interruption or data drift. The mounting plate has reserved M5 round holes, should use supporting bolts to firmly fix it on the mounting frame or bracket at the river bottom.

Cable Protection: Details That Cannot Be Ignored

• Waterproof Plug: Waterproof plugs between sensor, wireless transmission module, power controller, and battery box must be fully inserted and locked. This is the first line of defense to prevent circuit short circuit or open circuit.

• Wall-Mounted Fixing: Cables should be wall-mounted and fixed with cable clips, strictly prohibit using connecting cables as load-bearing lines to suspend transmitters or heavy objects.

• Jacket Protection: Strongly recommend sleeving transparent rubber water pipes or corrugated pipes outside the cable. If cables must pass over sharp object surfaces, must add protective sleeves to prevent skin damage from friction leading to water leakage.

Debris Filtering and Equipment Cleaning

In environments with branches, weeds, stones, or high-concentration sediment, install isolation grids in front of the velocity meter for preliminary water filtration. Management personnel should establish regular cleaning systems to ensure no foreign objects block the sensor probe surface, maintaining the best signal reflection quality.

Fault Prevention and Operation Discipline: Safety First, Sealing Supreme

To ensure long-term stable operation of the monitoring station, maintenance personnel should keep in mind the following "eight prohibitions" and maintenance disciplines:

• Power-Off Operation: Must disconnect power before any cover-opening debugging operation.

• Sealing Check: There are fastening screws on the shell, must check if waterproof sealing strip is intact when re-sealing. If sealing strip has garbage or particles, must clean thoroughly, otherwise IP68 level will fail.

• Clean Operation: Strictly prohibit cover-opening in rainy days or extremely dusty environments. If necessary, apply appropriate amount of 704 silicone to sealing ring to enhance sealing performance.

• Prohibit Rough Operation: Prohibit human pulling, swinging cables, prohibit hitting sensor shell. Cables must be fixed at riverbank, strictly prohibit swinging with waves.

Typical Application Scenarios of Doppler Flow Monitoring Station: From Urban Rivers to Industrial Discharge Outlets

NiuBoL Doppler flow monitoring station, with its "small size, light weight, wide range" characteristics, is active in the following key areas:

1. Urban Smart Water Affairs and Urban Flooding Monitoring
   In urban drainage pipe networks (especially in non-full pipe state), Doppler flow meter can accurately calculate water passage amount, providing first-hand decision data for urban flood control and drainage.

2. Agricultural Open Channel and Irrigation District Metering
   In agricultural irrigation open channels, the device can overcome sediment interference, achieving precise statistics of farmland inflow, assisting water-saving agriculture and comprehensive reform of agricultural water prices.

3. River Runoff and Small Watershed Monitoring
   In natural river channel monitoring, through RS485 remote transmission, management departments can view instantaneous flow and temperature changes of various tributaries while sitting in the office, establishing precise hydrological models.

4. Industrial Wastewater Discharge Monitoring
   For factory discharge outlets, the system can provide accumulated flow statistics, ensuring compliant and transparent sewage discharge behavior.

FAQ: Common Questions and Answers for Doppler Flow Monitoring Station

Q1: Can Doppler velocity meter be used in the Yellow River channel with high sediment content?
A: Yes. Doppler principle actually relies on suspended particles or bubbles in water as reflection points. However, note that if sediment concentration is too high causing complete absorption of sound waves, or deposited sediment covers the probe, it will affect measurement. Therefore in high-sediment waters, regular maintenance and adding filtering grids are recommended.

Q2: How to troubleshoot if RS485 data transmission is unstable?
A: First check if waterproof plugs are tightened and have oxidation traces. Secondly check if power supply voltage is stable within 10~30V range. Finally check if shielded wire is properly grounded and if there is large power motor interference.

Q3: Can the default 3-second measurement interval be modified?
A: Yes. Measurement interval can be set by sending corresponding instructions through ModBus communication protocol, can be appropriately extended for energy saving in channels with gentle water level changes, or maintain high-frequency measurement for industrial discharge outlets with dramatic flow changes.

Q4: Does Doppler velocity meter have requirements for water quality?
A: Doppler principle relies on suspended particles or bubbles in water for signal reflection. If water body is overly clear (such as laboratory-grade deionized water), signal strength will weaken. However, natural river water, rainwater, irrigation water, and sewage all contain sufficient particles, very suitable for use.

Q5: How to judge if sensor has "short circuit" or "open circuit"?
A: First check if communication indicator light is flashing. If no data output, immediately check if waterproof plug is loose or cable sheath is scratched by sharp objects in water. Using ModBus polling to check for error register feedback is also an effective method.

Summary:

NiuBoL Doppler flow monitoring station is not just a measurement tool, it represents a rigorous digital management attitude. From capture of Doppler frequency changes to sealing protection of ABS engineering plastic, every design detail points to one goal: providing the most authentic hydrological data.

On the road of smart water conservancy construction, details determine success or failure. Through standardized installation and scientific maintenance, NiuBoL will help every water conservancy worker master flow data.

Technical Parameter Quick Reference

Power Supply Voltage: DC 10V~30V
Communication Protocol: ModBus-RTU (RS485)
Velocity Accuracy: ±1.0% ±1cm/s (range 0.03~5m/s)
Water Level Accuracy: 0.3% ±0.5cm (range 0.03~5m)
Temperature Accuracy: ±1℃ (-10℃~60℃)
Protection Level: IP68
Shell Material: ABS Engineering Plastic
Standby Current: 65mA / 12V

Are you planning metering scheme for a certain river channel or drainage pipe network? Welcome to contact NiuBoL and its technical team, we will provide you with full-process technical support from selection layout to installation sheath protection.
