Duct Temperature and Humidity Sensors: HVAC Selection and Installed Cost

Time:2025-09-04 10:38:08 Popularity:1239

Quick Answer

Duct temperature and humidity sensors measure air conditions inside ductwork; they do not measure airflow unless a separate airflow function is included. Select the probe location, insertion arrangement, environmental limits and controller interface together. For cost comparison, obtain an itemized installed scope rather than assuming that all duct probes share one accuracy or price class.

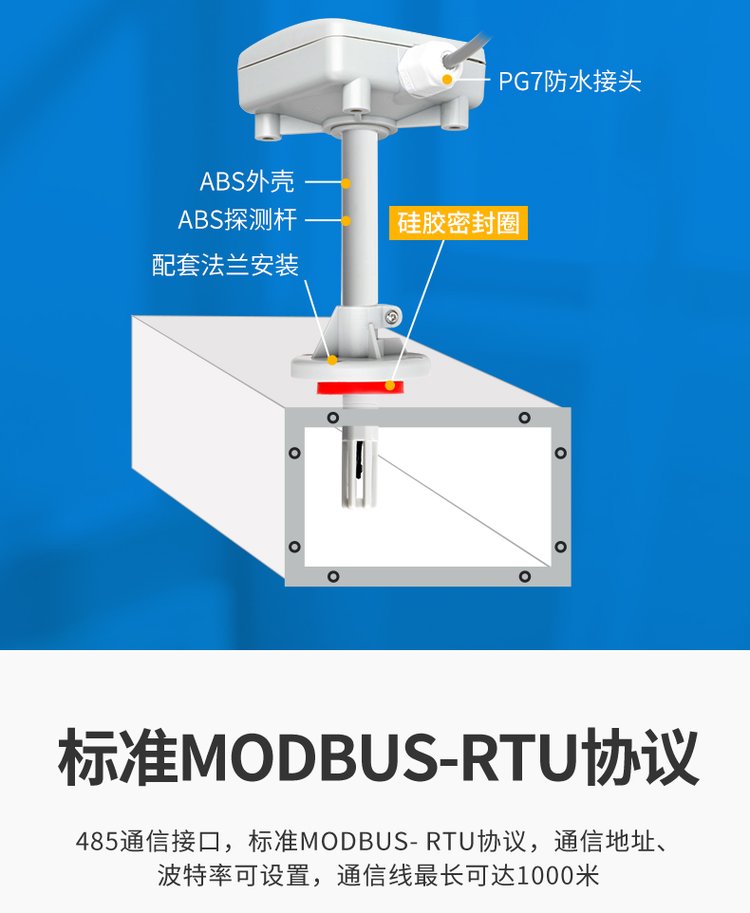

Duct-insertion temperature and humidity probe arrangement

Decide which air stream the duct sensor must represent

Supply air, return air, outdoor intake air and mixed air answer different control questions. Identify the required measurement point on the air-handling schematic before selecting a probe. A temperature after a coil cannot be interpreted as the room temperature, and a return-duct humidity value may not represent every occupied or process zone.

In a mixing section, air can remain stratified. A single insertion probe measures conditions around its sensing element, not automatically the average across the duct. Review the available distance from mixing points, coils, humidifiers and other disturbances. Where representative averaging is required, specify an appropriate measurement arrangement rather than relying on a longer metal stem alone.

Duct temperature and humidity sensors: define these quotation inputs

InputWhat to specifyWhy it changes selection or cost
Measurement performanceTemperature and RH ranges, allowable errors and response requirementAccuracy and test needs depend on the operating region
Mechanical arrangementUsable insertion depth, duct wall and insulation thickness, mounting accessThe active element must reach the intended air stream
ExposureCondensation, contaminants, cleaning agents, air velocity and pressureProbe, filter and housing suitability require separate checks
Electrical connectionAvailable DC supply and required analog or digital outputThe quoted version must match the receiving input
Protection and materialsProbe material, filter type, housing protection and cable entryA metal stem alone does not establish resistance to the whole environment
Commissioning scopeWiring, scaling, comparison checks and requested documentationEquipment price alone excludes the work needed for an accepted measurement

These are specification inputs, not a common set of ratings for every duct product. Ask for a drawing and the actual model data sheet. Where a required parameter is missing, resolve it before approval rather than filling the gap with a number taken from another sensor.

Insertion-style duct sensor with mounting and communication illustration

Insertion depth and sealing need a drawing

Distinguish total probe length from usable insertion depth. The duct wall, insulation and mounting fitting can consume part of the available length. Identify the active sensing region and ensure it reaches the intended air stream without contacting the opposite wall or obstructing service access.

Check the fitting, gasket and cable entry for the actual duct pressure and installation conditions. An enclosure ingress rating does not establish a gas-tight or pressure-rated duct connection. A mounting hole should be sealed using a suitable arrangement, and the housing should remain accessible without unnecessary dismantling of the air-handling system.

Condensation changes both measurement and maintenance

Relative humidity depends on air temperature as well as water-vapor content. The National Physical Laboratory explanation of dew point and RH describes this relationship. Two locations can have different RH values without a corresponding change in water-vapor content if their temperatures differ.

Near cooling coils or humidifiers, assess whether the sensing surface can become wet. A 0-100% RH measurement range does not establish accurate operation during condensation or immediate recovery after liquid exposure. Confirm the offered sensor's limitations and avoid treating a saturated or slow-recovering reading as a reliable control input without investigation.

Dust protection also involves a tradeoff: a protective filter can reduce contamination reaching the element, but its condition and airflow affect response. Ask how it is inspected or replaced. Stainless steel construction does not make the humidity element immune to oil aerosols, cleaning vapors or corrosive contaminants.

Duct-style probe connected to an external transmitter housing

Choose the output for the actual controller

For an analog transmitter, identify the signal type, engineering span, input load and supply requirements. Temperature and humidity may use separate channels. Check the ordered wiring rather than assuming one conversion applies to both variables or that every current-output connection uses the same power arrangement.

For RS485 Modbus RTU, confirm address, baud rate, parity, register map, scaling and data types. Digital communication avoids some analog conversion steps, but does not automatically improve the sensing element's accuracy. A correct packet can still carry an unrepresentative measurement from the wrong position.

Test the signal path and the air measurement separately

First verify that the building controller reads each channel with the correct unit and sign. Then compare actual air measurements under stable, matched conditions with an appropriate reference. A signal simulation checks the electrical interpretation; it does not calibrate the installed probe or demonstrate that the sampling position represents the required air stream.

What determines the installed cost?

Request separate pricing for the sensor configuration, insertion and mounting parts, cable, controller input requirements, configuration and commissioning. Add any specified calibration work and access needed for maintenance. This avoids comparing a probe-only offer with a package that includes the installation and acceptance work.

There is no substantiated universal price band for standard, high-precision and connected duct sensors. Current cost depends on the actual performance, materials, output and supply scope. Likewise, calibration, delivery time and warranty should be stated for the quotation; they are not guaranteed by a general industrial-use description.

Where NiuBoL air sensors fit in the wider system

An air-handling project may also monitor a room, greenhouse or outdoor reference point. The NiuBoL wall-mounted temperature and humidity transmitter and NBL-W-LBTH shielded air sensor provide references for those different mounting duties. Neither should be relabeled as a dedicated duct-insertion model without the appropriate mechanical and environmental specification.

For a NiuBoL inquiry, send the duct drawing, air conditions, required performance and controller interface. Ask whether an offered configuration meets that insertion duty and request its specific drawing and data sheet. For the wider weather or greenhouse system, keep ambient measurements separate from the duct control point.

Project Decision FAQ

Q1. Does a duct temperature/humidity probe measure air speed?

Not unless an airflow measurement function is specifically included. Temperature and RH describe air conditions. Air speed, volume flow and differential pressure require their own suitable measurements and cannot be inferred from an ordinary combined temperature/humidity value alone.

Q2. Is a longer probe always more representative?

No. Its active element must reach the required air stream, and the air at that position must represent the control objective. A long probe in stratified mixed air may still provide only a local reading. Check the location and required averaging arrangement.

Q3. Does RS485 provide better physical accuracy than 4-20 mA?

Not inherently. It changes data transmission and interpretation. Compare the actual sensor accuracy, response and installation conditions, then check the receiving system's contribution. Do not use the output label as a substitute for a measurement specification.

Q4. Can a wall-mounted transmitter be installed through a duct wall?

Only if the actual assembly is specified for that installation. Confirm usable insertion, sealing, air velocity, pressure, condensation and service access. An indoor mounting specification does not establish those requirements.

Q5. What should be checked when supply and return RH disagree?

Compare temperature and location as well as moisture conditions. RH varies with temperature, so a difference is not automatically sensor drift or evidence of moisture removal. Review stabilization, wetting and reference measurements before changing controller offsets.

The weather sensor range below illustrates separate environmental channels that may form part of a wider monitoring system. It does not define a duct probe's construction or substitute for the drawing and performance limits needed for the air-handling installation.

Weather sensor range for separate environmental monitoring channels

Summary

Select duct temperature and humidity sensors around the air stream, installation and control task. Require model-specific performance and exposure limits, and compare complete installed costs. Keep ambient and duct measurements distinct so the selected equipment answers the intended question rather than merely producing a readable signal.
