Cup vs Ultrasonic Anemometer Maintenance: Plan the Actual Service Work

Quick Answer

Cup vs ultrasonic anemometer maintenance is a comparison of service tasks, not a choice between maintenance and no maintenance. Cups and vanes need inspection of their moving assemblies. Ultrasonic instruments remove those rotating parts but still need clear acoustic paths, secure mounting and sound electrical connections. Compare the actual instruments, access arrangements and service scope before estimating operating cost.

Start with what moves and what measures it

A mechanical wind station commonly uses a cup anemometer for speed and a separate vane for direction. The cups respond to airflow, while the vane follows its direction. The electronics convert those motions into the selected output. Damage, obstruction or resistance in either moving assembly can affect the corresponding observation even when the other channel still works.

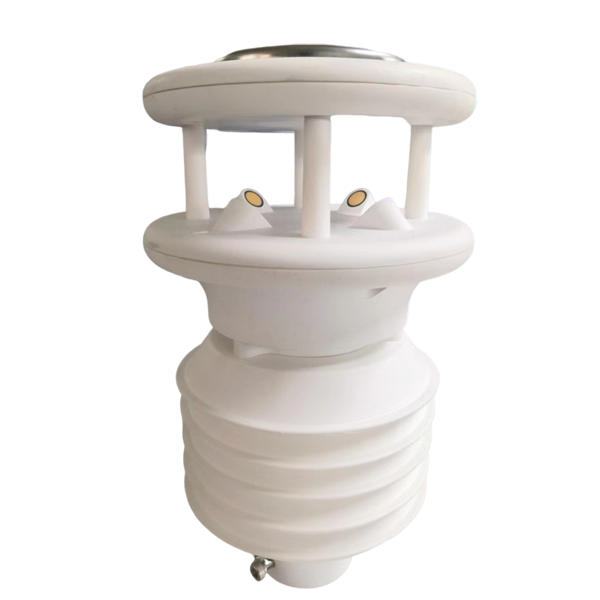

An ultrasonic wind instrument measures airflow using acoustic transit times. It does not need a cup rotor or directional vane. That removes particular wear points, but dirt, insects, ice or damage near the measurement paths still require investigation. No moving parts is a useful construction detail; it is not a complete maintenance specification.

Compare the work during a service visit

A hand-spun cup or a vane moved through its travel can reveal a gross functional problem. It is not a wind-speed or direction calibration. Likewise, a portable fan and a plausible ultrasonic reading do not establish measurement accuracy. If the project needs calibration evidence, specify that service separately from visual inspection and communication checks.

Keep the model specifications visible in the comparison

The following examples are different NiuBoL instruments, not interchangeable versions of one product. Their output options and environmental limits affect the service equipment and spares a contractor should carry.

The SS and DS have 5 V or 12-24 V supply configurations, depending on the version. The NBL-W-21MUWS configuration compared here uses DC 12 V. Use the delivered electrical specification and connector assignment before energizing any spare. RS485 Modbus RTU compatibility still requires the right address, serial settings, registers and units.

Set inspection intervals from the exposure and findings

There is no single justified monthly or annual interval for every cup vs ultrasonic anemometer maintenance plan. A dusty worksite, insect-prone farm and accessible research plot impose different inspection needs. Begin with the equipment's service requirements and the site's exposure, then retain findings so the interval can be reviewed.

After an event that may have damaged or contaminated the instrument, arrange an appropriate inspection rather than waiting for a routine date. A lack of visible motion during calm weather is not proof of a stuck cup, and a constant direction during very light wind is not automatically an electronics fault. Compare the symptoms with actual conditions and the recorded channel status.

Use the approved cleaning method. Do not scrape transducers, bend supports or add lubricant merely because an instrument contains moving parts. Cleaning, mechanical repair, adjustment and calibration are different interventions. Record which was performed and check the resulting data before returning the channel to normal use.

Put access and downtime into the service quotation

Travel, safe mast access, traffic or facility access arrangements and the time needed to restore observations can dominate a visit. A cheaper sensor is not necessarily cheaper to maintain if every inspection requires an expensive access operation. Conversely, an accessible installation may make a separate cup or vane replacement straightforward.

Ask for inspection, cleaning, fault diagnosis, replacement parts and any calibration as identifiable items. Establish whether a failed integrated wind instrument is repaired locally or exchanged as a complete unit. Do not assume a shared housing permits replacement of each internal channel in the field. Request the applicable service and spare-parts scope.

Project Decision FAQ

Q1. Is an ultrasonic anemometer maintenance-free?

No. It removes cup and vane rotation but still depends on clear measurement paths, correct exposure, secure mounting and reliable power and communication. Inspect it for the actual site conditions.

Q2. Should bearings receive lubricant at every visit?

Do not adopt that as a generic instruction. Use the model's approved procedure. An unsuitable intervention can damage the assembly or change its response; abnormal resistance needs diagnosis rather than automatic lubrication.

Q3. Does a successful bench reading prove calibration?

No. It can demonstrate response and decoding. Calibration requires a suitable reference, method and defined conditions. Keep functional checks separate from the calibration evidence requested by the project.

Q4. Can a spare ultrasonic head replace a pulse-output cup directly?

Not without checking the acquisition interface. The 21MUWS uses RS485, while a pulse-input host needs a suitable compatible arrangement. Supply, mounting and channel configuration also need verification.

Q5. How should maintenance costs be compared?

Compare an agreed inspection scope, access cost, expected service visits based on site evidence, spare strategy and required calibration. Request itemized quotations rather than assuming a fixed percentage saving from either measurement principle.

Keep the instrument instructions with the service record

Use the instructions for the supplied model and output version. Record the equipment identity, wiring, settings and any intervention so the next technician can distinguish the installed configuration from a similar-looking spare.

NBL-W-SS-Wind-Speed-Sensors-Instruction-Manual.pdf

NBL-W-DS-wind-direction-sensor-Manual.pdf

NBL-W-21MUWS-Ultrasonic-wind-speed-and-direction-sensor-instruction-manual.pdf

Summary

Cup vs ultrasonic anemometer maintenance differs most in the physical measurement assembly. Both technologies still require exposure, mounting and electrical checks. Choose the configuration whose service work, access needs and replacement arrangement fit the project, and obtain calibration evidence separately where required.
