Tipping Bucket vs Piezoelectric Rain Gauge: Read Accuracy Claims Correctly

Time:2025-01-08 19:21:45 Popularity:3069

Quick Answer

A tipping bucket vs piezoelectric rain gauge comparison needs equivalent accuracy claims, not just the smallest displayed increment. The NBL-W-RS specifies +/-4% under an indoor static test at 2 mm/min; the NBL-W-PRS specifies +/-4% for daily cumulative rainfall. Those statements refer to different conditions. Neither the shared percentage nor the different resolutions establishes a universal winner.

Rain gauge and weather monitoring illustration

First decide which rainfall result the project needs

A daily water-budget record and a short-duration rainfall-intensity record are different tasks. A gauge can meet one requirement without demonstrating the other. Specify the accumulation period, required intensity range and intended acquisition interval before asking whether a tipping bucket or a piezoelectric gauge is preferable.

For a system integrator, the useful comparison is a named configuration connected to a defined logger. A material description, an attractive decimal display or an unsupported general price range cannot establish the delivered measurement. Keep the gauge specification separate from platform graphs and from any flood-warning or irrigation logic added by the project.

NBL-W-RS rain gauge and specification illustration

Read resolution and accuracy on separate lines

The NiuBoL NBL-W-RS has a nominal 0.2 mm tip coefficient. Its stated accuracy is +/-4% in an indoor static test at 2 mm/min. The 0.2 mm value identifies the increment represented by a tip; it does not describe the measurement error of an entire event.

The NBL-W-PRS has 0.01 mm resolution and a +/-4% daily cumulative rainfall specification. A finer increment can be useful for reporting, but it does not establish instantaneous-intensity accuracy or make the daily total more accurate under every field condition. Ask which quantity the proposed acceptance test will assess.

Comparison itemNBL-W-RSNBL-W-PRS
Measurement approachCollected water and tipping eventsRaindrop impact response and conversion to rainfall
Specified intensity range0-4 mm/min0-8 mm/min
Resolution0.2 mm0.01 mm
Accuracy statement+/-4%; indoor static test at 2 mm/min+/-4%; daily cumulative rainfall
Electrical optionsSwitching, voltage or RS485 versionsRS485 MODBUS output
Temperature scope0-50 degrees C operating range-40 to 80 degrees C operating environment

A comparison with these conditions removed is incomplete. The different intensity ranges also matter: multiplying by 60 gives 240 and 480 mm/h respectively, but that conversion does not create a new accuracy specification. Do not assume the published error applies at every point up to the range limit.

Tipping-bucket gauge collector and mechanism details

Collection and impact sensing produce different evidence

A tipping-bucket test can relate a controlled water input to the accumulated number of metering events. It needs the correct collector area, coefficient and flow procedure. Tipping the bucket by hand checks the counting path, but it does not prove rainfall accuracy. Water still in a partially filled bucket has not yet produced the next full tip.

An impact sensor does not measure a collected water volume directly. Its rainfall result comes from the response to impacts and the conversion used by the instrument. A bucket-style pour test is therefore not automatically an equivalent validation procedure. The principle difference should determine the test arrangement, rather than forcing both products through an unsuitable demonstration.

Why a one-minute graph can look different

Consider an illustrative steady input of 0.1 mm/min into a correctly configured 0.2 mm tipping mechanism. Starting with an empty bucket, one full increment would take about two minutes. This explains the metering effect; it is not a universal sensor response-time specification. A one-minute graph may contain zero and one-tip intervals even though rain continued between them.

A piezoelectric system can report numerical increments without waiting for that same bucket-filling event. Its acquisition and averaging behavior still need checking. The fact that it has no tipping bucket does not mean that every short interval is equally accurate or that a faster upload rate produces a better rainfall measurement.

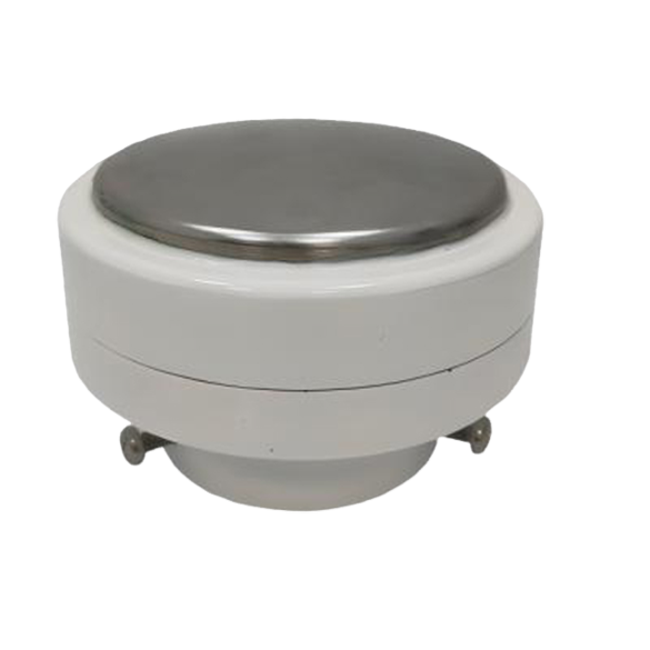

Piezoelectric rainfall sensor sensing surface

Compare installation sensitivity before selecting a mechanism

For a collection gauge, inspect the receiving rim, levelling, funnel and drainage path. Blockage or splash can affect the collected water. For an impact gauge, inspect the sensing surface, stable support and exposure to vibration or non-rain impacts. Neither mechanism is immune to an unsuitable installation.

The NBL-W-PRS installation calls for a stable mounting away from vibration sources, with suitable clearance and protection from splash. Do not install it on a flexible support simply because it is compact. Conversely, a tipping collector needs a level and unobstructed receiving position, not merely a convenient attachment point on the weather mast.

When other weather channels share the system, compare the rain component separately from the whole sensor package. Wind, temperature and radiation modules answer different questions. A photograph showing many channels does not establish which rain-gauge output, resolution or measurement conditions are included in the offered configuration.

Modular weather station sensor options

Check the electrical version rather than the connector alone

A reed-switch NBL-W-RS can suit a compatible counter input, while a voltage version needs the appropriate analog channel. An RS485 version needs its actual message definitions. Where Modbus RTU is supplied, confirm register type, units and reset behavior; the RS485 interface alone does not define those details.

The NBL-W-PRS uses DC 12-24 V and RS485 MODBUS output, with average current below 5 mA at 12 V and an IP66 housing. Include the receiving logger and gateway separately in the power design. Verify which registers represent intensity or accumulation, and whether the host is reading a cumulative value or computing interval rainfall.

Before replacing a gauge, test a complete record at the receiving system. A changed pulse coefficient or cumulative-reset rule can produce a false jump in the rain history even when the new sensor is working correctly. Preserve the commissioning boundary rather than silently joining incompatible totals.

Outdoor rain and weather monitoring station

Use a comparable test to support the purchase decision

Choose the test quantity from the project requirement. For event or daily totals, align the start and end times and note any unreported residual in a collection mechanism. For short-interval intensity, compare the actual reporting windows and measurement behavior. Retain exposure and quality notes; a shared calendar date is not enough to make two totals directly comparable.

The field comparison guide for piezoelectric and tipping-bucket gauges addresses that test design. Use it after establishing the model-specific specification. A field comparison and a datasheet comparison provide different evidence, and neither should be replaced by the statement that one principle is always more precise.

Rainfall monitoring application examples

Request price evidence for the actual configuration

There is no supported universal price range or permanent price order for these two types. Request current quotations for the specified model, output version, cable and mounting scope. Identify whether the quote includes only the gauge or also the logger, power system and communications. A currency figure without that scope is not a useful purchasing comparison.

Send NiuBoL the required rainfall quantity, expected intensity, freezing exposure, installation position and receiving input. Ask which accuracy statement applies and how it will be checked. That gives the supplier a concrete measurement task and allows the buyer to reject an offer that substitutes fine display resolution for the requested performance.

Rain collector installed on a weather station mast

Project Decision FAQ

Q1. Does the same +/-4% value mean equal performance?

Not by itself. The NBL-W-RS statement refers to an indoor static test at 2 mm/min, while the NBL-W-PRS statement concerns daily cumulative rainfall. Compare equivalent quantities and conditions before drawing a performance conclusion.

Q2. Does 0.01 mm resolution guarantee reliable drizzle measurement?

No. Resolution describes the reported increment. Drizzle performance also depends on sensing behavior, exposure, processing and the validation method. Request evidence for the rainfall conditions relevant to the project.

Q3. Is the model with the larger range automatically preferable?

No. It must also meet the required accuracy basis, installation and integration conditions. A larger intensity range does not establish smaller error at low rainfall or at the reporting interval of interest.

Q4. Can an operating range below freezing establish snow measurement?

No. An environmental rating does not define a snow-water-equivalent method. Specify frozen-precipitation measurement separately instead of treating it as a consequence of the sensor's operating temperature.

Q5. Can the same logger read both gauges?

Potentially, if it supports the ordered electrical versions and their configuration. Check pulse coefficient or analog scaling where applicable, and the actual serial protocol, registers and reset rules for digital versions.

Q6. What should be included in a useful comparison quotation?

Identify both model configurations, applicable accuracy conditions, supplied interface, cable and mounting scope. Include the proposed validation task and separate any complete-station equipment from the bare sensor price.

Summary

A tipping bucket vs piezoelectric rain gauge decision should follow the required rainfall record and the conditions attached to each specification. Keep resolution, accuracy, range and reporting behavior separate. Use defined configurations and comparable evidence rather than unsupported price or precision rankings.
