Rain Gauge Comparison: Method, Bucket Mechanism and Housing

Time:2025-01-08 19:52:52 Popularity:3416

Quick Answer

A rain gauge comparison should separate measurement method, bucket mechanism and housing material. A stainless-steel tipping-bucket gauge and an ABS tipping-bucket gauge use the same broad collection principle. A multi-stage bucket arrangement changes the internal water path. A piezoelectric gauge uses a different sensing method. These labels do not form a universal ranking of accuracy, price or suitability.

NiuBoL rain gauge and outdoor station illustration

Why four product labels are not four independent measurement principles

A quotation may list a tipping-bucket rain gauge, a double tipping-bucket rain gauge, an ABS gauge and a piezoelectric gauge. The list mixes different classification levels. The first describes a measurement principle, the second a bucket arrangement, the third a material or construction option and the fourth another sensing principle.

For procurement, identify what actually changes between the offered models. A different outer shell does not necessarily mean a different tip coefficient. A more elaborate bucket mechanism does not automatically provide better field accuracy at every rainfall intensity. Likewise, a finer displayed increment does not establish that a piezoelectric instrument is more accurate than a collection gauge.

Label in a quotationWhat it describesWhat to request
Tipping bucketRainwater collection and repeated metering eventsActual tip coefficient, range and accuracy conditions
Double or multi-stage tipping bucketA particular internal water-handling arrangementThe model's flow path and final metering coefficient
ABS or stainless steelHousing or component materialWhich parts use that material and how the model is installed
PiezoelectricImpact sensing and conversion to rainfall estimatesRange, accumulation definition, mounting requirements and test basis
Stainless-steel rain gauge construction details

A conventional paired bucket is not the whole meaning of double tipping bucket

A common tipping mechanism has two alternating receiving compartments on a pivot. That does not mean every such gauge is the same product as a separately marketed double tipping-bucket model. Read the internal flow arrangement rather than counting visible compartments in a photograph.

The NiuBoL NBL-W-DRS uses a staged water-handling arrangement before the final metering event. Its specified final rainfall resolution is 0.1 mm. Do not substitute the volume of an upstream stage for that final coefficient when configuring the logger. For setup details, use the separate NBL-W-DRS pulse-counting guide.

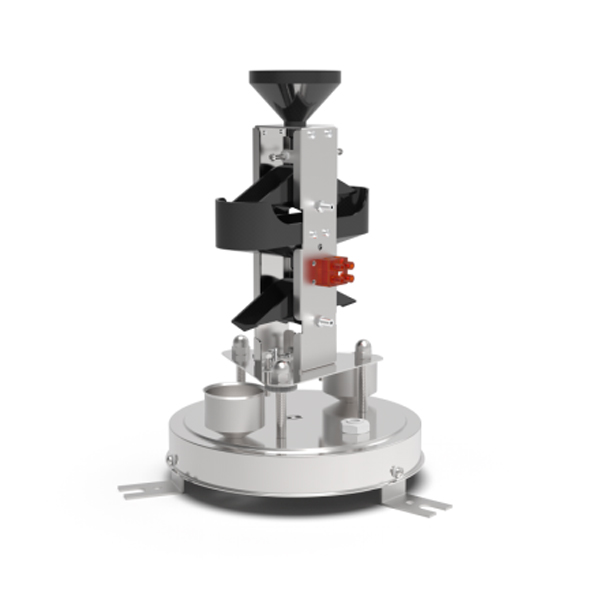

Staged tipping-bucket rain sensor mechanism

ABS identifies construction, not an accuracy class

An ABS tipping-bucket configuration still collects liquid precipitation and meters it through a bucket mechanism. Its body construction may affect weight, handling and installation choices. None of those facts establishes a universal accuracy penalty or advantage compared with a metal housing.

Check the supplied collector, bucket and output version together. Request the actual metering coefficient and test condition for the ordered unit rather than assuming that every plastic gauge has the same range. Material compatibility, sunlight exposure and service access are construction questions; rainfall accuracy needs a measurement specification.

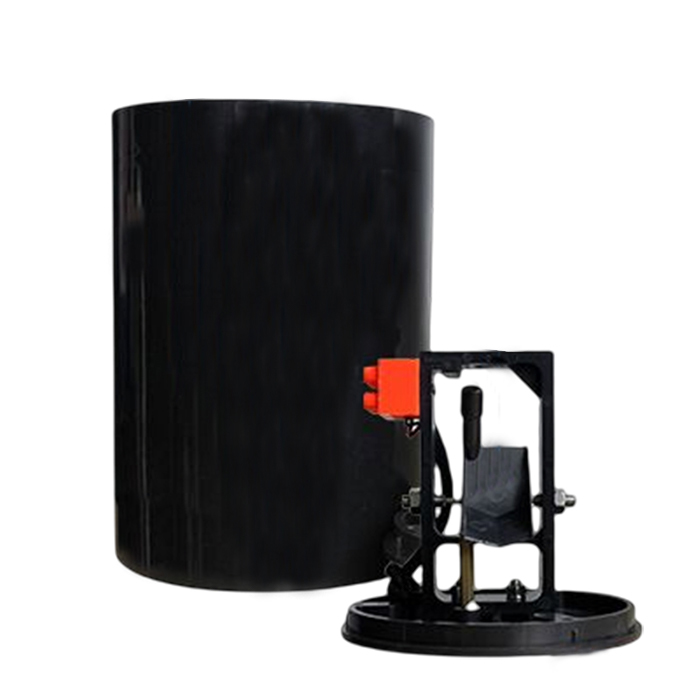

ABS tipping-bucket rain gauge construction

The station layout can matter more than the shell label

A collector needs a representative exposure, a stable level mounting and a clear water path. A mast, wall, tree or nearby surface can obstruct rain or introduce splash. Moving a gauge to fit a different bracket can therefore change the observation even when the replacement has a similar specification.

Compare the installation arrangement in the equipment offer. Determine whether the rain collector has its own support or shares a structure with a panel, wind instruments and a cabinet. A compact station is useful only if its component positions remain suitable for their respective measurements. Do not infer the rain collector's exposure from a photograph of the complete mast alone.

Weather station with a separate rain collector

Piezoelectric measurement changes the sensing task

The NBL-W-PRS piezoelectric rain gauge senses raindrop impacts and converts their response into rainfall quantities. It does not collect a known water volume in a tipping bucket or directly weigh each drop on a balance. The conversion method and exposure are part of the measurement.

The absence of a tipping mechanism removes bucket-specific service tasks, but it does not remove the need to inspect the sensing surface or mounting. The NBL-W-PRS installation calls for a stable arrangement away from vibration and splash. Do not equate a compact impact plate with unrestricted placement on any vibrating crossarm.

Piezoelectric rainfall sensing surface

Compare the actual configurations

ConfigurationSpecified rainfall range or resolutionAccuracy basis and selection limit
NBL-W-RS stainless-steel tipping bucket0-4 mm/min; 0.2 mm resolution+/-4% in an indoor static test at 2 mm/min; operating temperature 0-50 degrees C
NBL-W-DRS double tipping bucket0-4 mm/min; 0.1 mm resolution+/-4% in an indoor static test at 2 mm/min; operating temperature 0-60 degrees C
ABS tipping-bucket configurationUse the ordered model's tip coefficient and rangeDo not assign an accuracy class from the housing material
NBL-W-PRS piezoelectric gauge0-8 mm/min; 0.01 mm resolution+/-4% for daily cumulative rainfall; operating environment -40 to 80 degrees C

The percentages in this table refer to different test quantities or conditions. They are not a common ranking scale. Resolution is also a separate property. Use the model name and output version in the purchase specification so a distributor or integrator does not substitute a visually similar gauge with different metering or interface behavior.

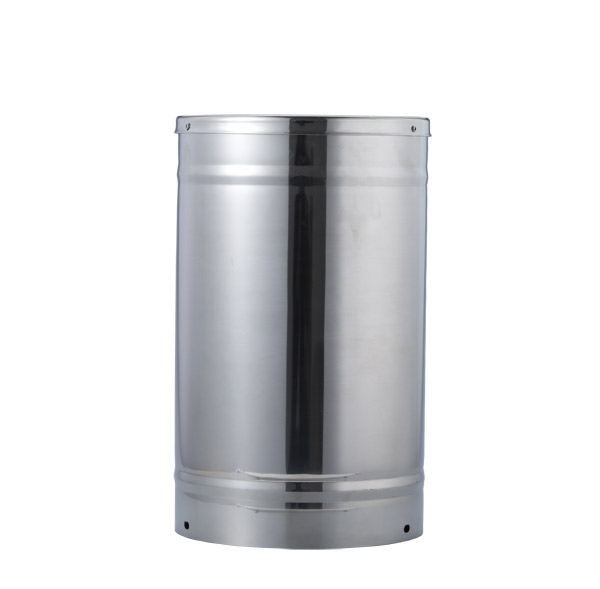

Stainless-steel tipping-bucket rain gauge housing

When the NBL-W-RS configuration fits the requirement

The stainless-steel NBL-W-RS is a liquid-rain option where its intensity range, 0.2 mm metering and service arrangement meet the project. Its output options include switching, voltage and RS485 versions. Specify the ordered electrical version; a pulse counter and a serial logger do not read the same signal in the same way.

Check access to the collector and mechanism before accepting an unattended installation. An accessible, correctly exposed collection gauge may be more useful than a nominally finer instrument that cannot be inspected after blockage. This is an installation decision, not a general claim that one sensor principle always needs less maintenance.

Double tipping-bucket rain sensor assembly

When a different bucket mechanism is worth specifying

The NBL-W-DRS offers a 0.1 mm final coefficient and a different internal water path. Select it because those properties suit the required record and acquisition arrangement, not because the word double promises twice the accuracy. The RS and DRS configurations have the same stated +/-4% test condition in the comparison above.

For a pulse version, verify counts using the final coefficient and distinguish a counter test from a controlled rainfall calibration. Confirm the output and supply pairing when ordering; do not copy the settings from a neighbouring station merely because the collector diameter appears similar.

ABS rain gauge body and bucket mechanism

When housing and service logistics drive the choice

For an ABS option, compare the complete mounting, collector access, replacement parts and handling requirements. Avoid a blanket statement that plastic means educational use only or that metal automatically means research grade. The project still needs an identified model with a suitable measurement specification.

Include the enclosure and mechanical parts actually supplied in the quotation. If a housing change also changes the collector, bucket or output electronics, list those differences explicitly. A price comparison based only on material names can conceal a different instrument configuration rather than a genuine like-for-like alternative.

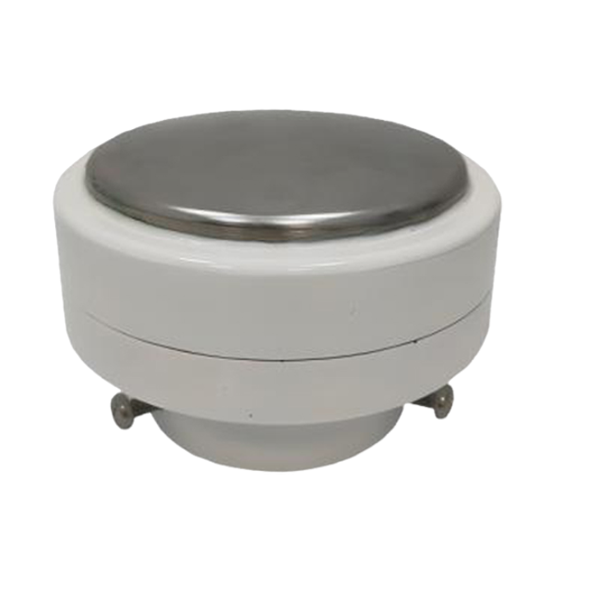

Compact piezoelectric rain sensor

When impact sensing is the more appropriate arrangement

A piezoelectric unit can suit a project that requires its compact form, digital output and stated range, provided mounting vibration and the required rainfall quantities are addressed. The NBL-W-PRS uses DC 12-24 V, RS485 MODBUS output and an IP66 housing. Verify the supplied protocol details and receiving-system interpretation before installation.

An operating-temperature range below freezing does not by itself prove a snow-water-equivalent measurement. Keep liquid rainfall, precipitation detection and accumulated snow water as distinct requirements. When uncertainty remains, compare actual records under a defined field procedure rather than choosing a principle from an unsupported universal accuracy claim.

Rain gauge field application examples

Project Decision FAQ

Q1. Are ABS and tipping bucket competing principles?

No. ABS describes construction, while tipping bucket describes a measurement mechanism. An ABS gauge can be a tipping-bucket gauge. Compare the actual model's collector, mechanism, output and specification.

Q2. Does double tipping bucket mean twice the accuracy?

No. It identifies a particular mechanism or staged arrangement. The final coefficient and accuracy condition must be checked for the model. The NBL-W-DRS has 0.1 mm resolution, but resolution is not a multiplication of accuracy.

Q3. Is 0.01 mm resolution evidence that piezoelectric is more accurate?

No. It describes the output increment. Compare the required quantity, test conditions, intensity range and field exposure separately. A fine numerical increment does not establish the error of a rainfall total.

Q4. Can a rain gauge be swapped without changing the logger?

Only if the input supports the new electrical version and its metering or register definitions. Check the pulse coefficient, voltage scaling or serial protocol as applicable. Physical mounting compatibility is not sufficient.

Q5. Which type is cheaper?

There is no reliable universal price order from the type labels alone. Request quotations for identified models, output versions and mounting scope. Do not compare a bare gauge with a package that includes acquisition and communications.

Q6. What information should accompany a selection request?

Provide the rainfall quantity required, expected intensity, freezing exposure, available supply, logger input, mounting position and service access. These details allow NiuBoL to assess the configuration without relying on a material or mechanism label alone.

Summary

A useful rain gauge comparison separates principle, internal arrangement and construction. Compare the NBL-W-RS, NBL-W-DRS, ABS and NBL-W-PRS configurations by their own specifications and installation needs. Keep resolution distinct from accuracy, preserve the test conditions and specify the complete electrical version before ordering.

Sensor documents

NBL-W-ARS tipping-bucket rain gauge instruction manual.

PDF downloadNBL-W-ARS-Tipping-bucket-rain-gauge-instruction-manual.pdf

NBL-W-RS rain sensor instruction manual V4.0.

PDF downloadNBL-W-RS-Rain-sensors-instruction-manual-V4.0.pdf

NBL-W-DRS double tipping-bucket rain sensor instruction manual.

PDF downloadNBL-W-DRS-Double-Tipping-Bucket-Rain-Sensor-Instruction-Manual.pdf

NBL-W-PRS piezoelectric rain sensor operator's manual.

PDF downloadNBL-W-PRS-Piezoelectric-Rain-Sensor-Operator's-Manual.pdf
