A rainfall and radar level station power budget should preserve observations during the storm, not merely keep the modem reachable in dry weather. Radar, pulse acquisition, data logging and transmission impose different loads and timing requirements. Size the supply from the selected operating cycle and test that reducing power does not create an unmeasured interval.

A station can send records every few minutes while collecting more frequently. Conversely, a frequent upload does not prove that rainfall tips were counted while the logger slept. Identify which circuits remain active between records: the pulse input, counter, clock, radar supply and acquisition processor may behave differently.
For the rain gauge, establish whether the input counts events during processor sleep and what happens through a power interruption. For the radar, establish whether the intended interval requires continuous power or a tested switched-supply cycle. Do not infer readiness immediately after energizing merely from a short Modbus response time.

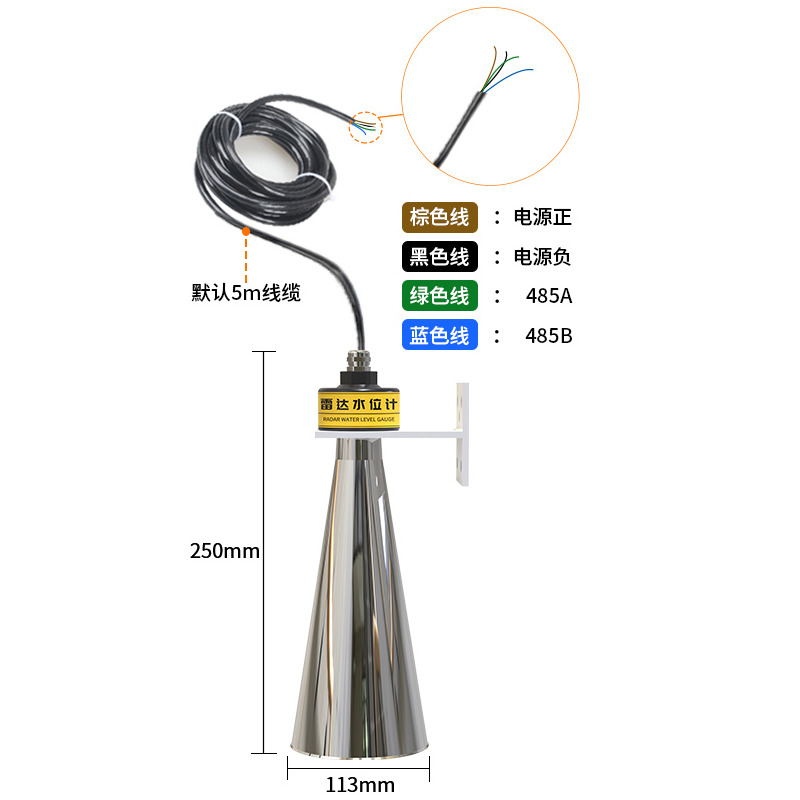

The horn-style instruments illustrated on this page should not automatically be assigned the specifications of a different lens-radar configuration. For a new project, the linked NiuBoL high-frequency radar level gauge provides the following reference for that configuration only. Confirm the delivered variant before finalizing the load schedule.
| Radar parameter | Configuration specification | Power-design relevance |
|---|---|---|
| Supply | 10-30 VDC | Check voltage at the instrument during peak station load |
| Consumption | Less than 0.2 W | Use 0.2 W conservatively for the illustrative calculation below |
| Measurement | FMCW; 76-81 GHz; 0.1-65 m range | Keep the required observation interval independent of upload timing |
| Interface | RS485 Modbus RTU | Include logger and any interface-converter load separately |
| Environment | -40 to 60 C; IP67 | Check each battery and enclosure against its own limits |
A combined radar flow instrument is another configuration, not a zero-cost velocity channel added to the level head. Its stated consumption can reach 1.3 W. Surface velocity and water level also require the appropriate channel geometry and conversion before discharge is obtained.

The following example is a calculation method, not a NiuBoL station package or promised autonomy. Assume a level head budgeted at 0.2 W continuously and an acquisition assembly averaging 0.8 W. Together they use 1.0 x 24 = 24 Wh/day. The acquisition figure is hypothetical and must be replaced by a measurement of the actual equipment.
Suppose the modem adds 3 W for one minute every fifteen minutes. Its duty fraction is 1/15, giving 3 x 24/15 = 4.8 Wh/day. The subtotal is 28.8 Wh/day. Applying an illustrative 10% allowance to that subtotal gives approximately 31.7 Wh/day. That allowance is a calculation assumption, not proof that all conversion losses and cold-weather effects are covered.
Count retries, standby consumption, controllers and any heater or accessory not already included. A 3 W additional continuous load would add 72 Wh/day, far more than the radar in this example. Measuring the full station over its operating cycle is therefore more useful than selecting a battery from the radar specification alone.

A hypothetical 12 V, 20 Ah battery has nominal energy of 240 Wh. If the design allows only 60% of that nominal energy to be used under the specified conditions, the allowance is 144 Wh. Dividing by 31.7 Wh/day gives about 4.5 days without charging. This is an example, not a runtime rating for an offered battery or station.
Choose the usable fraction from the battery chemistry, operating temperature, discharge limits and required aging margin. Voltage at the load must remain adequate before the calculated energy is exhausted. A regulator or cable drop can stop a sensor while nominal battery energy remains, and modem transmission can expose this weakness through short current peaks.
Solar panel watts are not daily recovered watt-hours. Charging depends on site and season, orientation, shading, controller behavior and losses. Size generation for the intended operating period and recovery after low-charge weather. Do not turn a panel nameplate into a fixed number of unattended days.

The NBL-W-RS tipping bucket rain gauge has a 0.2 mm increment in the specified configuration. Select the actual pulse, voltage or RS485 version with its matching supply requirement. An electronic output and an input circuit are not power-free merely because the bucket mechanism is mechanical.
At the gauge's stated upper intensity of 4 mm/min, a 0.2 mm increment represents 20 tips per minute, or an average interval of three seconds. This arithmetic does not specify contact duration or authorize a three-second debounce. Confirm the actual input compatibility, then apply a known number of test events while the logger is in the intended low-power state.
Compare the counter before and after scheduled uploads, reconnection attempts and restarts. Rainfall that was not counted cannot be reconstructed as an original observation from a later server connection. If the system retains a cumulative total, verify its behavior when power fails rather than assuming every logger stores each increment immediately.

Operate the complete station with its intended observation interval and upload schedule. Record supply voltage at the logger and sensor during transmissions. Repeat with a controlled communication interruption so retry behavior is included. If event-triggered faster reporting is offered, measure that mode separately; it can consume more energy exactly when charging is poor.
Inspect the stored series for original observation times, missing records and restart markers. Verify that the first reading after a switched-power cycle meets the agreed measurement requirement before relying on that strategy. Define which functions may stop first during low energy without disguising unavailable measurements as zero rainfall or unchanged water level.
A rain-and-level observation station is not by itself a flood forecast or warning authority. Its supply design should support the agreed data task and expose loss of measurement. Alarm thresholds, communications escalation and any safety-related response need their own project decisions rather than being implied by solar operation.

Only after confirming the selected instrument's startup behavior and testing the required interval. Include the switching hardware and startup energy. Do not assume the first returned value is suitable solely because communication succeeds.
No. That figure applies to the identified radar configuration. Logger, modem, regulation, accessories and retry behavior can dominate total energy use.
Capacity alone cannot answer that. Establish nominal voltage, usable energy under site conditions and measured daily demand. The worked 4.5-day result uses explicit hypothetical assumptions and is not an equipment guarantee.
Potentially, if event counting and local records remain active. Test those functions independently of the modem schedule, including interruption and restart behavior.
Send NiuBoL the sensor versions, site and season, observation and reporting intervals, network conditions, accessory loads and required no-charge period. Request a complete measured load schedule and battery assumptions rather than a standalone panel-watt recommendation.

A rainfall and radar level station power budget starts with the observation duty, then accounts for logging, transmission and recovery behavior. Convert measured loads to daily energy, distinguish nominal from usable battery capacity, and test pulse collection during low-power operation. These checks make a remote-station quotation relevant to storm data continuity rather than just dry-weather connectivity.
