Weather Measuring Instruments: Check the Complete Measurement Chain

Quick Answer

Weather measuring instruments should be purchased as complete measurement arrangements, not just sensor heads. The selected instrument needs suitable exposure, mounting, power, signal conversion and a usable record. Check those supporting items for each required quantity before comparing equipment prices or accepting a station package.

What completes the measurement?

A temperature sensor is only part of an outdoor air-temperature measurement. Its shield and exposure affect what it observes, while acquisition determines how the signal becomes a time-stamped value. A rain gauge similarly needs a stable, correctly installed collector and a receiver suited to its output.

Start with the required quantity and trace the complete arrangement. This prevents a low sensor price from concealing missing brackets, input equipment or field work. It also avoids pricing a complete station when the customer only needs a compatible replacement instrument.

Air instruments need exposure as well as electronics

The NBL-W-LBTH combines air temperature, relative humidity and pressure. Its multi-plate shield reduces direct solar heating of the sensing elements while allowing natural airflow. A probe placed in an unventilated general-purpose box is not an equivalent outdoor air measurement.

Specify the surrounding environment and mounting position. A location beside a warm wall or equipment exhaust may produce a real observation of that exposure while being unsuitable for a reference-air task. Do not use a software offset to hide a physical exposure problem.

Pressure and humidity also need precise names. Relative humidity is not dew-point temperature, and pressure at the instrument is not automatically reduced sea-level pressure. Identify any calculation performed by the host instead of treating its outputs as additional sensing hardware.

Weather measuring instruments need model-specific specifications

Read range, resolution and accuracy separately. They answer different questions, and their definitions vary by quantity. Comparing a rain increment with wind-speed accuracy or treating every display step as a measurement tolerance produces an unreliable equipment schedule.

These figures belong to named models, not to every instrument illustrated in a station photograph. Confirm the supplied versions and any project-specific performance evidence. No single percentage describes the accuracy of a complete mixed-sensor station.

Soil probes observe a different medium

The NBL-S-THR soil moisture and temperature probe needs suitable contact with the soil at the intended depth. Air measurements on the mast do not replace it. Include the installation point and cable route when the probe forms part of the order.

Keep the probe's function limited to its specified channels. This model does not provide EC, pH or NPK. Where those quantities are needed, obtain an appropriate separate instrument rather than adding labels to the temperature/moisture display.

Radiation instruments need the intended measurement plane

A NBL-W-HPRS pyranometer measures solar irradiance on its installed plane. A horizontal, tilted or shaded arrangement produces a different observation. The quotation should identify which arrangement is supplied, not simply include an item called a light sensor.

Illuminance in lux, broadband irradiance in W/m2 and photosynthetic photon flux are not interchangeable. Likewise, an unshaded pyranometer does not independently provide direct and diffuse solar components. Select any shading or tracking equipment only where the required observation calls for it.

Wind and rainfall require access to the environment

Wind instruments need a mounting position suitable for the airflow being observed and mechanical clearance for moving parts where used. Direction also requires a known orientation reference. The NBL-W-SS and NBL-W-DS are separate speed and direction instruments, not two software labels from one cup rotor.

For rainfall, verify collector access, levelling and service clearance. The NBL-W-RS is specified for liquid precipitation with a 0-50 C operating range; storage below freezing does not establish valid frozen-precipitation measurement. Add appropriate equipment if the project requires snowfall or snow depth.

Check what the receiver must do

Selected digital versions communicate through RS485 Modbus RTU. Analog and pulse instruments require their corresponding inputs and conversion. Confirm the actual signal before connecting equipment; matching a supply voltage or plug shape is not enough.

A compatible PLC, RTU or data logger must preserve the channel's units and time definition. Establish whether it records samples, means, extremes or accumulations. A current reading on a screen does not prove the required interval data are retained.

Separate an instrument check from a system check

A simulated electrical input can check receiver scaling, but it does not verify the sensing element's physical response. Conversely, an instrument comparison does not prove the remote application stores the right channel. Select a suitable check for each part of the chain.

At handover, follow a measurement from the instrument to the final record, including its point identity, unit and observation time. Inspect installation and service access separately. A working network link cannot compensate for blocked exposure or a rain collector that cannot be maintained.

Make the missing items visible before ordering

For a NiuBoL quotation, mark what is already installed and what the supplier must provide. Include the required quantities, environment, mounting, input equipment and data destination. Identify any calibration evidence, installation or integration work needed for acceptance.

Compare proposals on that same boundary. If one excludes cables, brackets or configuration, carry those items into the project comparison. Prices become meaningful only when the customer can see which complete measurement arrangement will be delivered.

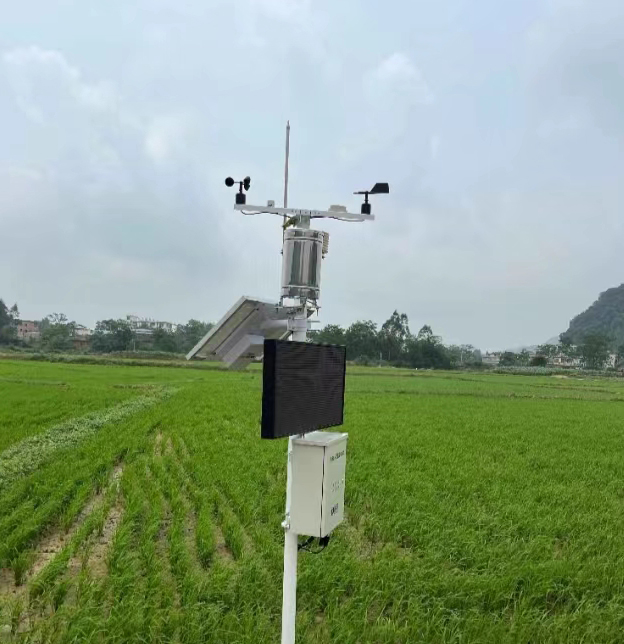

Application photographs illustrate possible layouts, not a standard bundle for every site. A farm, outdoor facility and radiation study can use related equipment with different mounting and recording requirements. Keep the approved component list with the installation record so later replacements preserve the original measurement function.

Project Decision FAQ

Q1. Is a sensor head a complete measuring system?

Not necessarily. Identify its exposure, mounting, power, output and receiving arrangement. Some are supplied together; others must be purchased or installed separately.

Q2. Can one accuracy figure describe every station channel?

No. Air temperature, wind, rainfall and radiation have different specifications and test conditions. Use named instruments and channel-specific requirements.

Q3. Does RS485 guarantee compatibility with an existing logger?

No. Check protocol, serial settings, registers and interpretation as well as the electrical interface. Analog or pulse versions need different inputs.

Q4. Does an input simulation prove sensor calibration?

No. It verifies the receiving path under the simulated conditions. Assess the physical instrument with an appropriate reference and method when measurement performance must be checked.

Q5. What should an instrument quotation include?

State the instrument version, supporting installation items, receiver requirements and agreed evidence or services. Distinguish a replacement component from a complete installed measurement point.

Summary

Weather measuring instruments deliver useful observations through a complete chain of sensing, exposure, electrical acquisition and recording. NiuBoL component selection should make each of those items visible. This allows customers to compare actual supplied work and prevents a missing shield, input or record function from appearing only after installation.
