What Is a Snow Sensor? Presence, Depth and Water Equivalent

Quick Answer

A snow sensor may detect precipitation presence, measure snow depth or support a separate snow-water measurement. These are different tasks. A rain-and-snow presence switch does not report accumulation in millimetres, and a depth sensor does not directly measure the water stored in a snowpack. Define the required quantity before choosing the device.

Three meanings of "snow sensor" that change the specification

A contractor asking for a snow sensor may need to close a roof vent when precipitation reaches it. A research team may need the depth of accumulated snow above a ground reference. A hydrology project may need the liquid-water equivalent of the snowpack. Those requirements cannot be covered by replacing one channel label with another.

A rain-and-snow detector answers an occurrence question

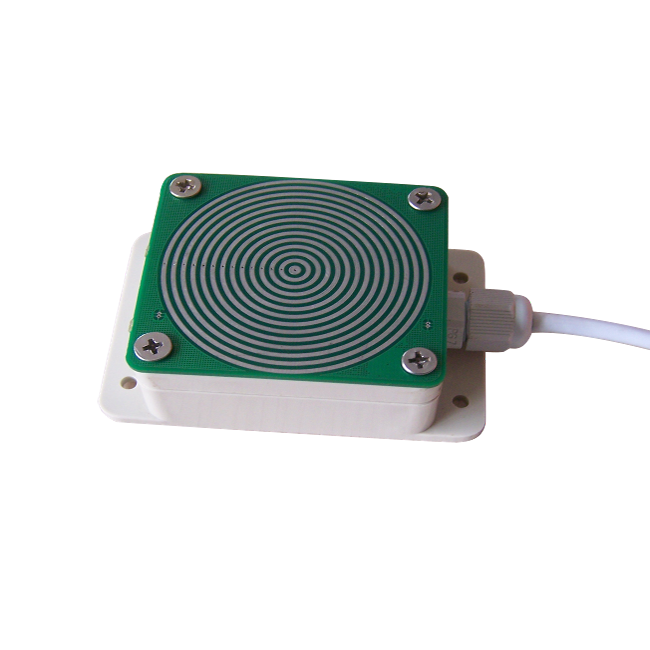

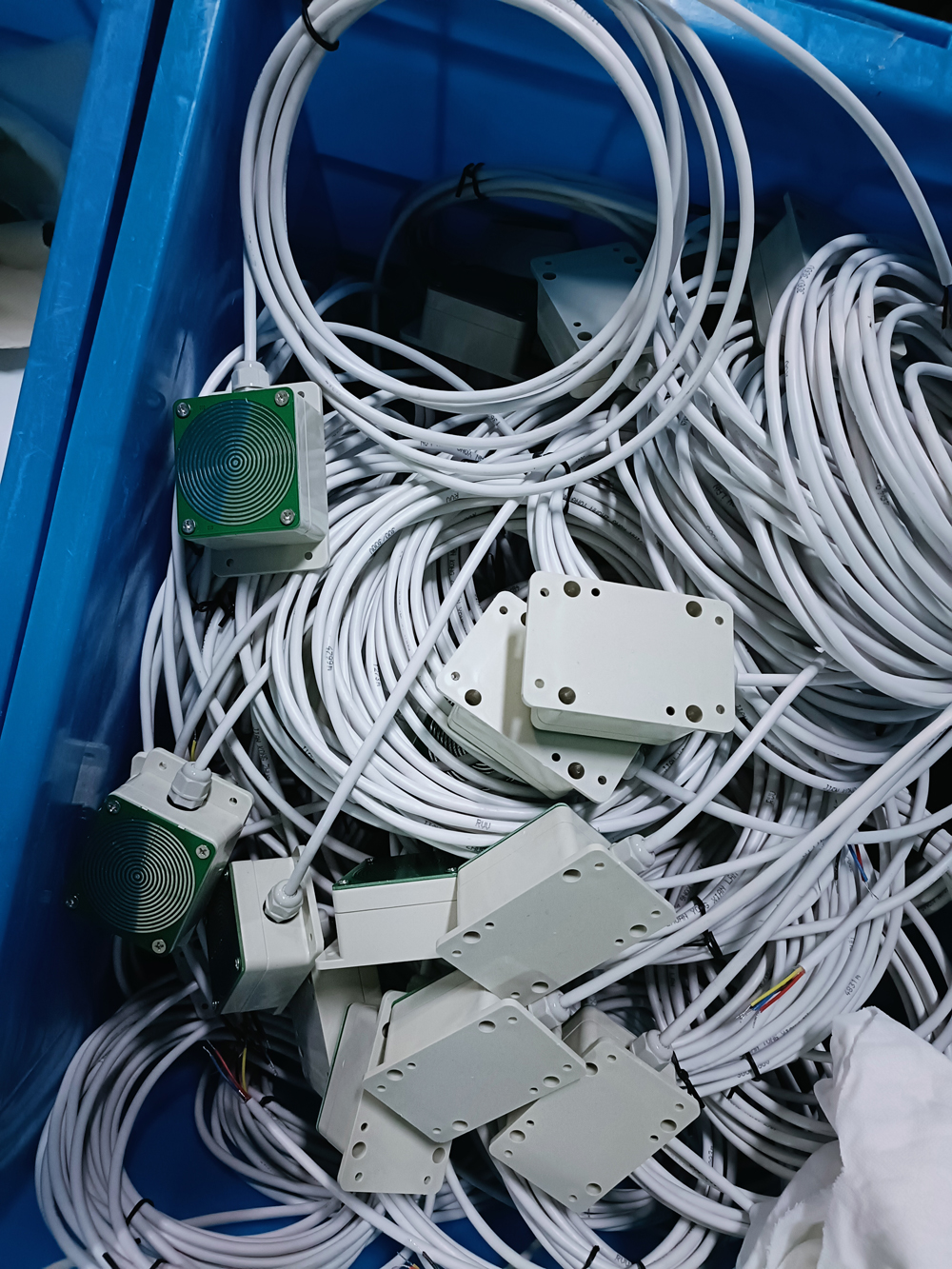

The NiuBoL NBL-W-RSS detects precipitation using a surface electrode grid and provides a relay contact output. Its built-in heater helps manage material on the sensing surface. This is a qualitative channel: it indicates a detected condition rather than producing a snow-depth or liquid-precipitation total.

That distinction matters for a PLC input. The system needs a defined mapping between contact state and the intended event. It also needs a response to loss of sensor power or a wiring problem. A normal dry indication should not be assumed to prove that the entire sensor circuit is healthy. The separate rain-and-snow relay integration guide covers that connection in more detail.

Specify a presence detector when the useful question is whether precipitation has reached that exposed surface. Do not specify it as a substitute for a rain gauge or use the number of active minutes as rainfall depth. Wetting, drying and heating behavior prevent a simple conversion from contact duration to precipitation amount.

The NBL-W-RSS installation guidance specifies an approximately 15-degree tilt from horizontal to help material drain from the surface. Check its exposure to roof runoff or spray: either can activate a local wetness detector without representing precipitation at the wider site. The controller must interpret the event in that context.

A snow depth sensor needs a stable reference

The NBL-W-SNOW is an ultrasonic snow depth instrument. It measures distance toward the surface below and relates that distance to a previously established bare-ground reference. A depth reading therefore depends on stable geometry as well as the electronics. Moving the head or changing the reference surface changes the meaning of the result.

For example, a sensor 1500 mm above its bare-ground reference and a valid surface-distance reading of 1280 mm imply 220 mm of snow depth. This is a geometry example, not a permitted mounting-height specification for a particular model. Installation must still respect that instrument's working distance, blind region and mounting instructions.

A positive change in depth is not automatically an exact new-snowfall total. Wind redistribution, settling, melting or a disturbed reference patch can alter depth. Keep the depth record and any derived snowfall estimate distinct. For installation-specific checks, see the related guidance on snow-free reference and mounting checks.

Snow depth is not snow water equivalent

Snow water equivalent expresses the depth of water obtained from a snowpack if it melted. A depth-only sensor cannot determine that quantity without additional information. A simplified relationship is water equivalent = snow depth multiplied by the ratio of snow density to water density; representative density remains a separate measurement requirement.

As an illustration, 200 mm of snow at an assumed density ratio of 0.10 corresponds to 20 mm of water equivalent. At 0.30, the same depth corresponds to 60 mm. These assumed examples show why a fixed conversion is unreliable; they are not estimates of the density at a proposed project site.

A weighing precipitation gauge has another role: it measures precipitation entering its collector, not necessarily the water already stored across the surrounding snowpack. If a tender asks for "snow amount," clarify whether this means event precipitation, ground accumulation or stored water. Keep those definitions in the equipment schedule and in the receiving database.

Compare the electrical requirements as well as the snow measurement

The two models require different receiving inputs. A relay contact belongs on a suitable digital input circuit; an RS485 instrument needs a compatible serial receiver. Do not assume RS485 means Modbus RTU without checking the ordered sensor's communication documentation. A PLC, RTU or data logger must support the actual interface and message format.

For solar-powered winter stations, calculate the heater-active energy case, not only the low-power measurement case. Supply voltage, cable voltage drop and the site's winter energy balance need review together. An operating-temperature rating does not guarantee an ice-free sensing surface or continuous operation during every winter weather event.

Choose the snow channel around the field decision

Building ventilation: A precipitation-presence signal can be an input to a vent controller. The controller still needs approved operating logic, manual override and suitable actuator interfaces. Neither a relay detector nor an ordinary weather logger should be described as a complete building safety control system.

Roadside monitoring: Snow depth beside a road does not establish snow depth on a ploughed lane. A presence signal does not establish pavement icing. Specify the roadside reference patch and any additional pavement measurements separately, and state which local observation is being transmitted to the traffic-management system.

Research and water projects: Depth observations can describe local accumulation and change over time. Projects estimating water storage need representative density or appropriate additional instruments. A single patch should not be presented as an area-wide water inventory without a sampling and interpretation method.

Ski-area operations: A fixed depth channel can monitor one selected observation point. Grooming, drifting and visitor activity can make that point unrepresentative of other slopes. Protect and document the reference area; do not convert its reading into a general operational clearance for the whole site.

What to send when requesting a snow sensor

Tell NiuBoL whether the required output is presence, accumulated depth or a water-related quantity. Include the expected depth, winter power source, proposed mounting photograph, intended observation patch and receiving equipment. For replacement work, provide the existing input type and protocol rather than only the old product's general description.

Pricing depends on the measurement category and installation scope. A presence detector and a ranging instrument are not comparable quotations simply because both are called snow sensors. Confirm whether brackets, acquisition inputs, heating power provision and integration work are included before comparing costs. No universal project price is implied by the model name.

Project Decision FAQ

Q1. Can a rain-and-snow sensor distinguish rain from snow?

Not merely because its name mentions both. The NBL-W-RSS provides a precipitation-presence contact, not a separate precipitation-phase classification. If the project needs rain, snow and mixed-phase categories, request an instrument and output definition explicitly supporting that task.

Q2. Does an ultrasonic snow sensor measure new snowfall?

It measures depth at its reference patch. New snowfall may increase depth, but settling, drifting and melt can also change it. A derived snowfall estimate needs a stated method and supporting observations; the depth difference alone should not be relabelled as a directly measured snowfall amount.

Q3. Can the snow-depth output indicate structural snow load?

Depth alone is insufficient because density and distribution affect load. Do not use an ordinary depth reading as a certified structural loading assessment. A roof or other safety-critical project needs a method and instrumentation appropriate to that engineering responsibility.

Q4. Can both models connect to one weather logger?

Yes, if the specified logger has the appropriate digital contact input and compatible serial interface, together with the required power capacity. Check each connection separately. One shared dashboard does not eliminate the differences between a binary presence state and a numeric depth record.

Q5. Is heater power included when sizing the solar system?

It must be considered. Use the selected sensor's heating demand and the expected winter operating conditions in the energy calculation. Size the complete station load, not just the sensing electronics, and confirm the required operating reserve against the site's solar availability.

Q6. What should the installation acceptance test demonstrate?

Demonstrate the requested quantity at the receiver: contact-state interpretation for a presence detector, or valid depth and reference geometry for a ranging instrument. Also check timestamps, communication loss and the heater-active power case where applicable. A successful serial connection alone does not validate the snow measurement.

Product documents

The NBL-W-SNOW document provides model-specific snow-depth installation and connection information. Use it with the ordered instrument's identification and the proposed mounting arrangement; the worked geometry examples above do not replace the installation limits. Keep that document available to the integrator responsible for the receiving channel.

NBL-W-SNOW-Ultrasonic-Snow-depth-sensor-Manual4.0.pdf

The NBL-W-RSS document covers the precipitation-presence device, which requires a different input arrangement from the depth instrument. Review its contact wiring and installation orientation before connecting it to a controller. Do not transfer the snow-depth unit's serial-interface assumptions to this relay-output device.

NBL-W-RSS-Rain-Snow-Sensor-instruction-manual.pdf

Summary

Choose a snow sensor by the quantity the project needs: precipitation presence, accumulated depth or water equivalent. NiuBoL NBL-W-RSS and NBL-W-SNOW serve different roles and may be complementary. A clear measurement definition prevents the wrong input hardware, misleading database fields and unsupported conclusions about snow conditions.
