Aquaculture Water Quality Monitoring Plan: Routine Sensors and Targeted Tests

Quick Answer

An aquaculture water quality monitoring plan should separate routine operational measurements from tests for specific hazards. Online dissolved oxygen, pH and temperature help operators follow changing culture conditions. They do not detect heavy metals, pesticide residues or pathogens. Select additional methods for those questions rather than treating a normal sensor dashboard as evidence that every water-quality risk is absent.

Start with the decision the farm must make

For an intensive pond, the immediate question may be whether aeration is maintaining oxygen at the monitored depth. In a recirculating aquaculture system, it may be whether the treatment train is handling a change in feeding load. For a farm receiving water from a variable source, the question may instead be whether that incoming water needs a targeted investigation before use. These are different measurement tasks.

The original purpose of monitoring remains practical: identify changes early enough for staff to inspect conditions, verify readings and choose a response. Avoid promising a fixed production increase or disease prevention from sensors alone. Stocking, feed, equipment condition, water exchange and biological management also affect the result. A contractor should therefore define which decisions the installed measurements support and which require a sample, a separate test or specialist review.

Aquaculture water quality monitoring is not a universal contaminant test

A pH probe measures pH; a fluorescence DO probe measures dissolved oxygen. Neither becomes a pesticide or heavy-metal detector when connected to a cloud platform. A plausible pH value can coexist with a contaminant that the instrument does not measure. If contamination is suspected, identify the substance or group of substances, select an appropriate analytical method, and agree the sampling instructions with the testing provider.

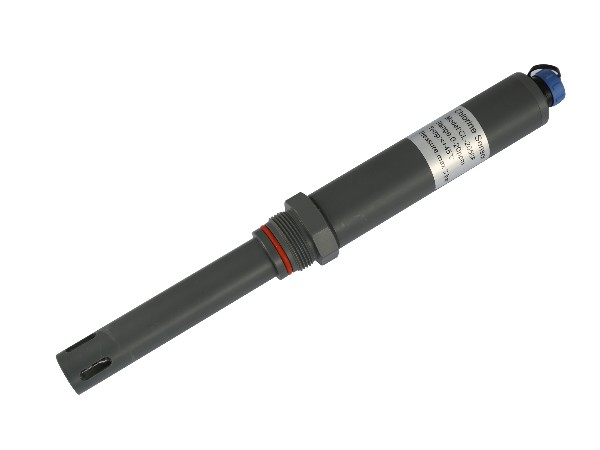

Disinfection monitoring is another specific task. A residual-chlorine electrode may be relevant at an intake-treatment or disinfection stage where chlorine is deliberately used. It is not a substitute for DO in a stocked pond, and a chlorine measurement must not be presented as a general assessment of fish health. The pictured electrode below illustrates that separate treatment-monitoring role; it is not the fluorescence DO model discussed later.

Keep routine sensor channels interpretable

Record the location and depth with every channel. A reading beside an aerator and one from a poorly mixed zone answer different questions. In a recirculating system, retain the distinction between culture tank, treatment inlet and treatment outlet. A farm-wide average can conceal a local problem, especially if several probes are assigned the same display label.

For ammonia-related measurements, retain the reported species and unit. Do not rename an ammonium result as un-ionized ammonia or treat a value reported as nitrogen as identical to the same numerical value reported as the whole compound. If a calculation is used, document its inputs, including pH, temperature and any salinity-dependent assumptions. Species-specific operating limits should be set by the farm's technical management, not copied from an unrelated installation.

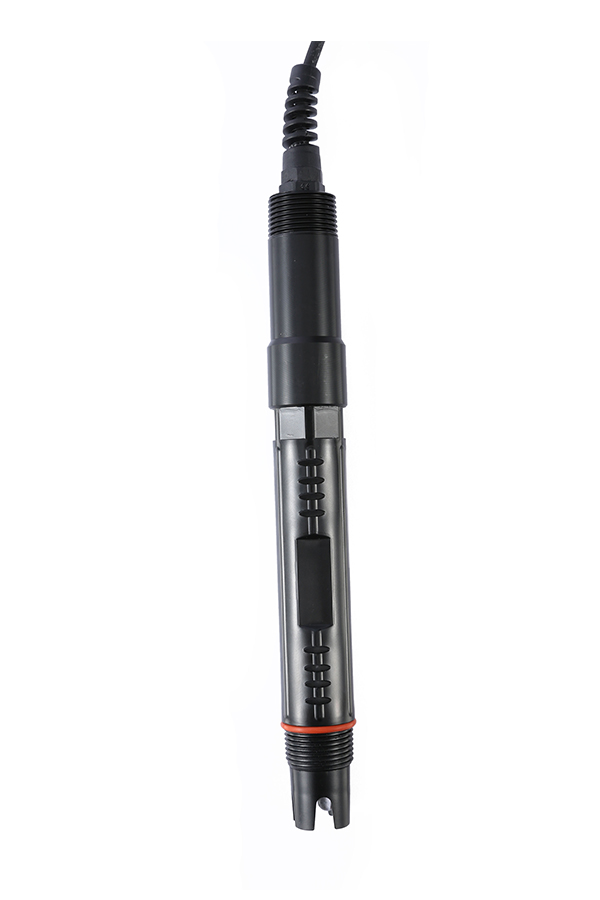

The pH channel needs its own maintenance and reference checks. If the trend changes abruptly after cleaning or calibration, inspect the probe and compare a representative sample before interpreting the step as a biological event. Retain the pre-service and post-service times so an operator can distinguish a water change from an instrument intervention.

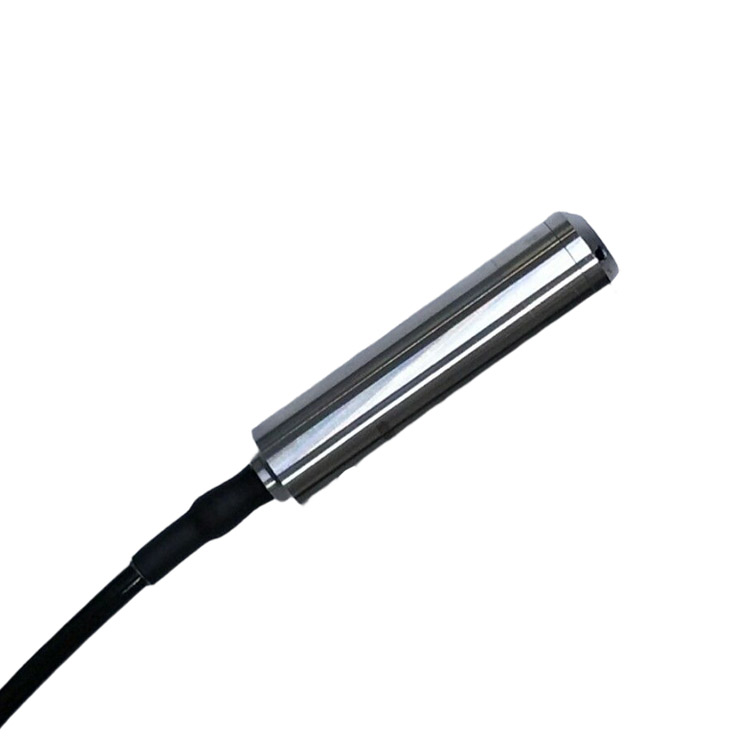

A DO sensor example, not a complete farm specification

The NiuBoL NBL-WQ-DO-4S is a fluorescence-based online dissolved oxygen sensor. Its role is a DO and temperature measurement point. The following specifications help assess that channel; they do not establish alarm limits for a species or describe the older electrode photographs in this article.

The fluorescence principle does not consume oxygen or require electrolyte replacement. It still requires inspection, cleaning and appropriate calibration checks. Fouling, trapped bubbles, a damaged sensing cap or unsuitable compensation settings can affect the result. Treat salinity compensation as a configuration item when moving between freshwater and saline conditions, rather than assuming automatic suitability for every water body.

Water level belongs beside quality data, not inside it

A water-level sensor can show changes associated with exchange, pumping or an unexpectedly low tank. That context helps explain why a water-quality reading changed, but level does not measure oxygen, pH or pollutants. Keep its unit, location and alarm purpose distinct from the chemical channels.

For example, a falling tank level accompanied by a DO change may justify an inspection of supply and circulation. It does not establish a single cause. Check the actual water movement, probe submergence and aerator condition before deciding on a response. A probe exposed to air must not continue to be treated as a valid submerged measurement.

Make targeted testing comparable with the online record

When a targeted sample is needed, record the collection point, depth, time, production stage and recent feed, aeration or water-exchange events. Follow the testing provider's instructions for containers, preservation, transport and holding time; these differ by analyte. A result from a different pond, depth or day cannot automatically validate the online measurement at the incident location.

For a DO or pH comparison, minimize changes caused by collection and handling and use a suitable checked reference method. For a contaminant investigation, retain the analytical method and reporting limit with the result. A result below a reporting limit means the analyte was not quantified above that limit by that method; it does not mean the entire water body is free of every hazard.

Integrate useful records, not just live numbers

An RS485 Modbus RTU installation needs unique addresses, supported serial settings and a verified map from registers to named channels. Test negative or exceptional values where relevant, temperature units, decimal scaling and loss-of-communication behavior. Show a stale reading as stale instead of repeating its last value as though it were current.

For a multi-tank project, test a physical change or reference check at one location and confirm that only the correct dashboard channel responds. Store cleaning, calibration and sensor-replacement events alongside measurement history. Those records allow the farm to distinguish a real water-quality trend from a changed sensor or wiring label.

Define the monitoring scope before requesting equipment

Give NiuBoL the culture system, species, freshwater or salinity conditions, tank or pond layout, water source and existing control system. Separate continuously monitored parameters from periodic or incident-driven tests. Also state who can inspect an alarm, how probes will be reached for service and which records the farm needs to export.

The purchase is then easier to assess: enough representative measurement points for operational decisions, a suitable method for each required parameter, and a separate route for questions that online probes cannot answer. Adding every available sensor is not necessarily more useful than placing and maintaining a smaller, well-defined set.

Project Decision FAQ

Q1. Can normal DO and pH readings rule out heavy-metal contamination?

No. Those probes do not measure heavy metals. Investigate a suspected metal using an appropriate analytical method and representative samples. Normal routine readings cannot be used as a substitute.

Q2. Does every aquaculture site need an online chlorine electrode?

No. It is relevant where the process includes a defined chlorine-monitoring task, such as treated incoming water. Select it for that stage and measurement requirement, not as a replacement for oxygen or other culture-water channels.

Q3. Can one probe represent several tanks?

Only if the sampling arrangement and response time genuinely represent the required locations. Separate tanks can develop different conditions. A shared measurement should not be displayed as simultaneous tank-specific data without a defined and tested sampling sequence.

Q4. Why retain temperature with DO and ammonia-related results?

Temperature helps interpret oxygen conditions and is needed in relevant ammonia-equilibrium calculations. Keep it time-aligned with the associated measurement. It does not remove the need to retain the reported chemical species, unit and compensation settings.

Q5. What should be tested before accepting a monitoring installation?

Check channel identity at each physical location, reference comparisons, communication-loss indication, alarm routing and retrieval of historical records. Verify that maintenance events remain identifiable and that a missing sample is not converted into a normal reading.

Q6. What information makes a quotation useful?

Provide the measurement locations, required parameters and methods, salinity and temperature conditions, mounting access, power and receiving-system details. Ask the supplier to distinguish included sensors from separate analytical testing and from optional automation.

Summary

A useful aquaculture water quality monitoring plan matches each decision to a measurement method. Routine DO, pH, temperature and selected nitrogen channels support operations; targeted tests address other defined hazards. Keep those roles separate, preserve sample context and verify that each displayed value belongs to the correct water location.
